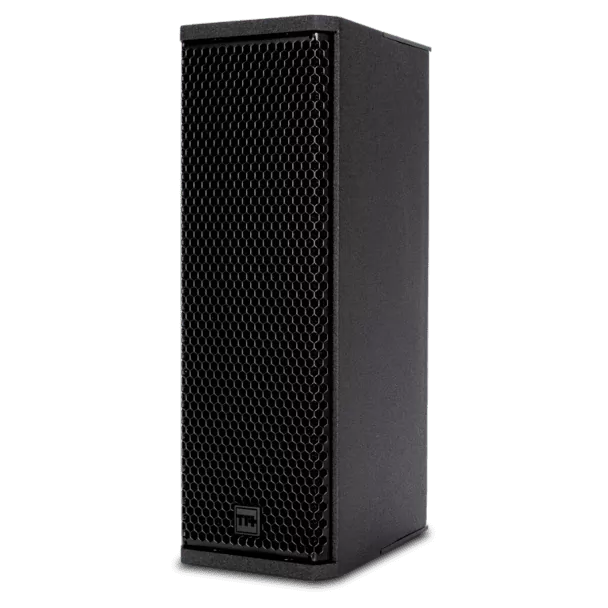

RCF TT 515-A - Dual 5" 2000W Active Powered column Array

SKU
RCF-TT515-A
  • 127 dB max SPL
  • 100° x 70° coverage
  • LF 2 x 5" neodymium woofer, 2” voice coil
  • HF 1.75” titanium comp. driver
Special Price $1,999.00 $2,499.00 - You Save: $500 (20.01%)

Have a Question? Ask an Account Manager

Call us: (516) 597-5450

Or: Conatct Us

The RCF TT 515-A is a powerful and versatile dual 5" column array loudspeaker system that is designed for use in a wide range of professional audio applications. With a peak power output of 2000 watts, this active powered speaker delivers exceptional sound quality and clarity, making it an ideal choice for live performances, DJ setups, and more.

Featuring a sleek and modern design, the TT 515-A includes two 5" woofers and a 1.7" neodymium compression driver, which work together to deliver a frequency response range of 45Hz to 20kHz and a maximum SPL of 133dB. This makes it easy to achieve high-quality sound even in large and challenging audio environments.

In addition to its impressive sound quality, the TT 515-A also includes a range of advanced features and connectivity options. The speaker includes a built-in DSP processor that provides advanced signal processing and equalization, as well as multiple input and output options, including XLR, RCA, and USB.

One of the standout features of the TT 515-A is its versatility and ease of use. The speaker includes a simple and intuitive control panel that makes it easy to adjust the volume, EQ, and other settings on the fly. It also includes a range of mounting options, making it easy to set up and position the speaker in any environment.

Whether you're a professional audio engineer or a musician looking for a powerful and versatile speaker system, the RCF TT 515-A is an exceptional choice. With its advanced features, powerful output, and sleek design, it delivers the performance and quality that you need to take your audio production to the next level.



Regenerate response
FEATURES
  • 127 dB max SPL
  • 100° x 70° coverage
  • LF 2 x 5" neodymium woofer, 2” voice coil
  • HF 1.75” titanium comp. driver
  • 2 x Class-D amplifiers, 1000 Watts RMS total power
  • 70 – 20.000 Hz frequency range
  • RDNet on board
  • FiRPHASE and Bass Motion Control

SPECIFICATIONS
ACOUSTICAL SPECIFICATIONS
Frequency Response:
70 Hz ÷ 20000 Hz
Max SPL @ 1m:
127 dB
Horizontal coverage angle:
100°
Vertical coverage angle:
70°
TRANSDUCERS
Compression Driver:
1 x 1.0'' neo, 1.75'' v.c
Woofer:
2 x 5.0'' neo, 2.0'' v.c
INPUT/OUTPUT SECTION
Input signal:
bal/unbal
Input connectors:
XLR, RDNet Ethercon
Output connectors:
XLR, RDNet Ethercon
Input sensitivity:
-2 dBu/+4 dBu
PROCESSOR SECTION
Crossover Frequencies:
1200
Protections:
Excurs.
Limiter:
Fast Limiter
Controls:
Bypass, Linear/High Pass, Volume, RDnet on board
RDNet:
Yes
POWER SECTION
Total Power:
2000 W Peak, 1000 W RMS
High frequencies:
600 W Peak, 300 W RMS
Low frequencies:
1400 W Peak, 700 W RMS
Cooling:
Convection
Connections:
Powercon IN/OUT
PHYSICAL SPECIFICATIONS
Cabinet/Case Material:
Baltic birch plywood
Hardware:
2X M10 TOP AND BOTTOM
2X PIN D.10
Handles:
2 TOP AND BOTTOM
Grille:
Steel
Color:
Black
SIZE
Height:
456 mm / 17.95 inches
Width:
154 mm / 6.06 inches
Depth:
237.5 mm / 9.35 inches
Weight:
9.8 kg / 21.61 lbs
SHIPPING INFORMATION
Package Height:
510 mm / 20.08 inches
Package Width:
290 mm / 11.42 inches
Package Depth:
200 mm / 7.87 inches
Package Weight:
11.3 kg / 24.91 lbs

More Information
ConditionNew
MPN (manufacturer part number)TT515-A
UPC (Universal Product Code)8024530019594
