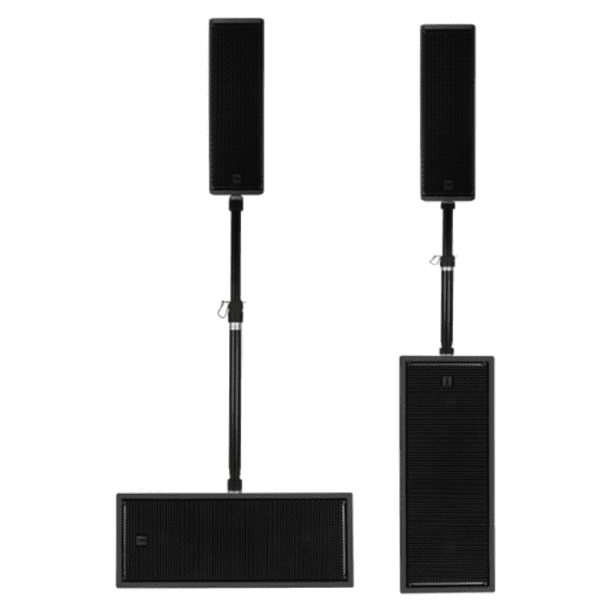

RCF TT515-A + TT808-AS - Professional Column Array System

SKU
RCF-TT515-A+TT808-AS

1X TT515-A

1X TT808-AS

1X PM-KIT TT 515



Special Price $4,798.00 Regular Price $5,798.00
Account manager

Have a Question? Ask an Account Manager

Flexibility, power, and small footprint make the TT 515-A speaker and TT 808-AS subwoofer ideal for high-powered portable and installed professional applications where size and weight are critical factors.


This approach combines the advantages of TT+ technology such as controlled dispersion, outstanding clarity, high-power, multiple rigging accessories, weather protection, and RDNET real-time management software with recallable presets.

Combine TT 515-A with TT 808-AS subwoofer to create a potent full-range main system with an incredible size to power ratio. Whether it’s used as a compact main system, as fills, or surrounds in a larger system, it's quick to deploy and fast to tune.



A 2000 WATT SPEAKER THAT CAN FIT IN YOUR PALM



The two-channel 2000 W (1000 W RMS) amplifier is small, ultra-silent, and fanless.
Producing a Max SPL of 127 dB, is perfect for 3D/immersive sound, nearfield systems,
and productions that demand extreme sound quality.
The rotatable 100x70 degree pattern reaches a wide area, perfectly matching the directivity of the woofers.
The internal DSP has a whole range of protections for the transducers and includes special FiRPHASE and BMC processing
to achieve coherent distribution of sound without phase distortion and deep,
tight bass at any volume.

A LITTLE BOX WITH SUPERPOWERS

The amplifier integrates a low-noise 32-bit DSP circuit, controlled through the RCF proprietary RDNet network to easily handle soft clipping limiters, RMS limits, polarity, amplitude, timing, and equalization. All the settings, monitoring, and more advanced features are available inside the RDNet Networked Management software. The available control panel on the back adjusts volume, high-pass, and bypass. The regulated power supply guarantees full power from 100 V to 260 V. The amplifier is housed in a unique Vibrostop floating aluminum panel for extra protection during transportation.

BUILT FOR EVERYDAY USE

Use it as a compact and powerful main system or to supplement a larger system. The waterproof cabinet is built in high-strength baltic birch plywood coated with black, robust, and scratch-resistant polyurea paint. Attached to a solid machined aluminum structure at the back, the amplifier heat dissipation is efficient and the cabinet is sturdy and stiff. A strong powder-coated metal grille protects the front, and an acoustically transparent sound foam backing on the inside of the grille ensures protection from dust and humidity.

RIG IT ANYWHERE

The only limit is your imagination. With multiple rigging accessories and the unobtrusive form factor of the cabinet, TT 515-A is suitable for a wide range of configurations including hanging, pole-, truss-, wall- or ceiling-mounting— at any angle in horizontal or vertical orientation. The rotatable waveguide (and rotatable logo) allows for perfect dispersion control at any position.

The speaker’s rigging is fast and easy using the practical Quick Fit socket to easily install accessories such as the clamp mount, pole mount, horizontal brackets, or using the two M10 threads on top and bottom of the cabinet. You will always find a place for TT 515-A.

A STUNNING SOUND SYSTEM

Pair the TT 515-A with the TT 808-AS subwoofer to extend the low-frequency range and create a powerful full-range main system with an incredibly small footprint. With multiple configuration options, the powerful DSP and RDNet remote management, there isn't a too big or too small venue.

GOOD THINGS COME IN SMALL PACKAGES

Uncompromising fidelity and power with TT+ sonic signature. This means you have perfect phase and frequency compatibility among all TT+ speakers so you can serve up a breathtaking sonic experience in all your applications.

AN UNOBSTRUCTED STAGE

Uncompromised sound without blocking critical sightlines. The ultimate flexibility for tight spaces, small stages, and small gigs with extreme portability. You can pack a full-range stereo system with two TT 515-A, two 808-AS subwoofers, poles, and cables in less than 200-liters volume.

TT 515-A

PROFESSIONAL ACTIVE SPEAKER
Flexibility, power, and compactness make the TT 515-A ideal for installed and portable professional applications where size and weight are critical factors. This approach combines the advantages of TT+ technology such as controlled dispersion, outstanding clarity and extreme power, multiple flexible rigging accessories, weatherproof protection, and RDNET real-time monitoring and management software with recallable presets. Its transducer configuration pairs two custom-loaded 5-inch cone drivers to a rotatable CMD waveguide surrounding a titanium 1.75-inch high-frequency compression driver. Whether it’s used as a compact main system, as fills, or surrounds in a larger system, TT 515-A is quick to deploy and fast to tune.

  • 127 dB max SPL
  • 100° x 70° coverage
  • LF 2 x 5" neodymium woofer, 2” voice coil
  • HF 1.75” titanium comp. driver
  • 2 x Class-D amplifiers, 1000 Watts RMS total power
  • 70 – 20.000 Hz frequency range
  • RDNet on board
  • FiRPHASE and Bass Motion Control
SPECIFICATIONS
Acoustical specifications

FREQUENCY RESPONSE:
70 Hz ÷ 20000 Hz

MAX SPL @ 1M:
127 dB

HORIZONTAL COVERAGE ANGLE:
100°

VERTICAL COVERAGE ANGLE:
70°
Transducers

COMPRESSION DRIVER:
1 x 1.0'' neo, 1.75'' v.c

WOOFER:
2 x 5.0'' neo, 2.0'' v.c
Input/Output section

INPUT SIGNAL:
bal/unbal

INPUT CONNECTORS:
XLR, RDNet Ethercon

OUTPUT CONNECTORS:
XLR, RDNet Ethercon

INPUT SENSITIVITY:
-2 dBu/+4 dBu
Processor section

CROSSOVER FREQUENCIES:
1200 Hz

PROTECTIONS:
Excurs.

LIMITER:
Fast Limiter

CONTROLS:
Bypass, Linear/High Pass, Volume, RDnet on boar

RDNET:
Yes
Power section

TOTAL POWER:
2000 W Peak, 1000 W RMS

HIGH FREQUENCIES:
600 W Peak, 300 W RMS

LOW FREQUENCIES:
1400 W Peak, 700 W RMS

COOLING:
Convection

CONNECTIONS:
Powercon IN/OUT
Standard compliance

CE MARKING:
Yes
Physical specifications

CABINET/CASE MATERIAL:
Baltic birch plywood

HARDWARE:
2X M10 TOP AND BOTTOM 2X PIN D.10

HANDLES:
2 TOP AND BOTTOM

POLE MOUNT/CAP:
Yes

GRILLE:
Steel

COLOR:
Black
Size

HEIGHT:
456 mm / 17.95 inches

WIDTH:
154 mm / 6.06 inches

DEPTH:
237.5 mm / 9.35 inches

WEIGHT:
9.8 kg / 21.61 lbs
Shipping informations

PACKAGE HEIGHT:
510 mm / 20.08 inches

PACKAGE WIDTH:
290 mm / 11.42 inches

PACKAGE DEPTH:
200 mm / 7.87 inches

PACKAGE WEIGHT:
11.3 kg / 24.91 lbs

TT 808-AS

PROFESSIONAL ACTIVE SUBWOOFER
TT 808-AS is a compact low-profile high-performance active subwoofer. It features two vented-loaded 8" cone woofers powered by a 1000 Watts two-channel amplifier -one for each woofer- on a baltic birch plywood cabinet painted with black polyurea and weatherproof treatment. Management and tuning are available via RDNet software or using the two preset buttons, a polarity button, and a variable delay accessible from the back panel. The cabinet features rubber feet on two sides and two threaded pole-mounts for horizontal and vertical placement. Two stabilizing brackets make the vertical placement stable and firm. TT 808-AS can be used stand-alone, in subwoofer arrays, or as the low-frequency complement for TT 515-A speaker.

  • 129 dB max SPL
  • 40 Hz to 400 Hz frequency range
  • 1000 W RMS Class-D Amplifier
  • 2 x 8'' neodymium woofers, 2.5'' v.c
  • RDNet on board
  • Bass Motion Control excursion management
  • Flexible Rigging
  • Rotatable TT+ Logo
SPECIFICATIONS
Acoustical specifications

FREQUENCY RESPONSE:
40 Hz ÷ 400 Hz

MAX SPL @ 1M:
129 dB
Transducers

WOOFER:
2 x 8'' neo, 2.5'' v.c
Input/Output section

INPUT SIGNAL:
bal/unbal

INPUT CONNECTORS:
XLR, RDNet Ethercon

OUTPUT CONNECTORS:
XLR, RDNet Ethercon

INPUT SENSITIVITY:
-2 dBu/+4 dBu
Processor section

PROTECTIONS:
Excurs.

LIMITER:
Fast Limiter

CONTROLS:
Gain, Equalization, ByPass on board

RDNET:
Yes
Power section

TOTAL POWER:
2000 W Peak, 1000 W RMS

LOW FREQUENCIES:
2000 W Peak, 1000 W RMS

COOLING:
Convection

CONNECTIONS:
Powercon IN/OUT
Standard compliance

CE MARKING:
Yes
Physical specifications

CABINET/CASE MATERIAL:
Baltic birch plywood

HARDWARE:
2X M20 TOP AND SIDE 8X M10 2X SIDE

HANDLES:
2 X SIDE

GRILLE:
Steel

COLOR:
Black
Size

HEIGHT:
243.5 mm / 9.59 inches

WIDTH:
603.5 mm / 23.76 inches

DEPTH:
430 mm / 16.93 inches

WEIGHT:
20 kg / 44.09 lbs
Shipping informations

PACKAGE HEIGHT:
290 mm / 11.42 inches

PACKAGE WIDTH:
480 mm / 18.9 inches

PACKAGE DEPTH:
650 mm / 25.59 inches

PACKAGE WEIGHT:
21 kg / 46.3 lbs



More Information
ConditionNew
MPN (manufacturer part number)TT515-A
UPC (Universal Product Code)8024530019594
