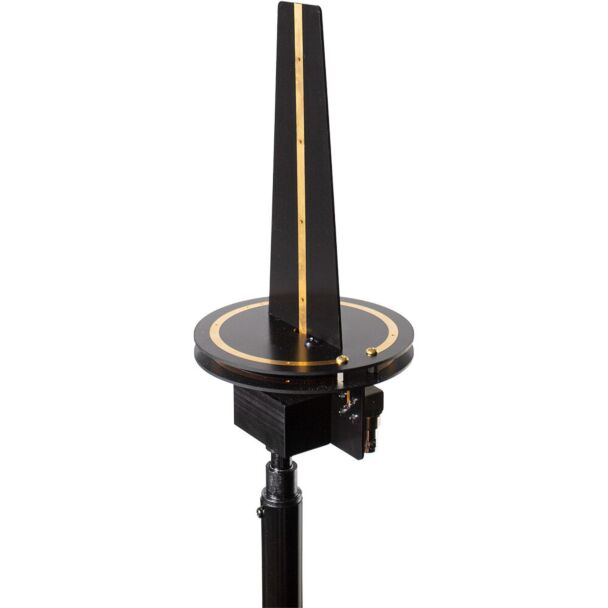

RF Venue D-OMNI -Diversity Omni Antenna (470 and 616 MHz)
What's Included:
- Diversity Omni Antenna
- Stand mount
- Weather resistant cover
Have a Question? Ask an Account Manager
Call us: (516) 597-5450
Or: Conatct Us
Avoid Dropouts with Wireless Mics Diversity Omni™ Antenna
Building on the success of the highly acclaimed Diversity Fin® Antenna, the Diversity Omni Antenna is an all-new antenna system designed for omnidirectional coverage of wireless microphones. The Diversity Omni features two antennas on a single stand, capturing both vertically and horizontally polarized signals and eliminates the most common signal dropouts in a compact size.
Compact design for easy placement, position wherever coverage is needed.
Perfect for multi-zone projects where mics move between rooms, or outdoors where wide areas of coverage are needed.
Weather resistant design allows it to be mounted outdoors by installing protection for the connectors and the provided Cordura nylon cover.
The Diversity Omni also offers greater flexibility in antenna placement, since only one is needed in place of two separate antennas. Its weather resistant design allows it to be mounted outdoors by installing simple protection for the connectors and the provided cordura nylon cover.
The Diversity Omni Antenna is perfectly suited for indoor multi-zone projects or outdoors where large areas of coverage are needed, such as sports venues, theme parks, and amphitheaters.
To connect the Diversity Omni Antenna to a wireless microphone system, simply connect both the A and B antenna inputs from an antenna distribution system like the RF Venue DISTRO4 or DISTRO9 HDR and position the antenna where coverage is desired.
Unlike traditional omnidirectional antennas, the Diversity Omni Antenna allows receivers to see a constant signal regardless of microphone orientation - allowing the presenter to hold a wireless microphone in any position relative to the antenna. A single Diversity Omni provides superior coverage to two traditional omni antennas, allowing cost savings as well as reduced time to installation.
Electrical Operating frequency .............................. 470–616 MHz Bandwidth............................................... 146 MHz Average return loss (Vertical)............... -10.5 dB Average return loss (Horizontal)........... -8.3 dB Impedance .............................................. 50Ω Vertical Monopole Beam width............................................. 360° azimuth F/B ratio.................................................. 0 dB F/S ratio .................................................. 0 dB Gain......................................................... +2 dBd @ 500MHz Horizontal Folded Loop Beam width............................................. 360° azimuth F/B ratio.................................................. 0 dB F/S ratio .................................................. -1 dB Gain......................................................... -2 dBd @ 500MHz Physical Length..................................................... 105mm / 4.2” Height...................................................... 204mm / 8” Weight..................................................... 187g / .5lb Mount threads ........................................ 1/4-20, 3/8-16, 5/8-27 Operating temperature.......................... -23–54°C / -9–130°F Color ....................................................... Black and Gold Connector(s)........................................... (2) BNC female
| Condition | New |
|---|---|
| MPN (manufacturer part number) | D-OMNI |
| UPC (Universal Product Code) | 00672975227340 |
