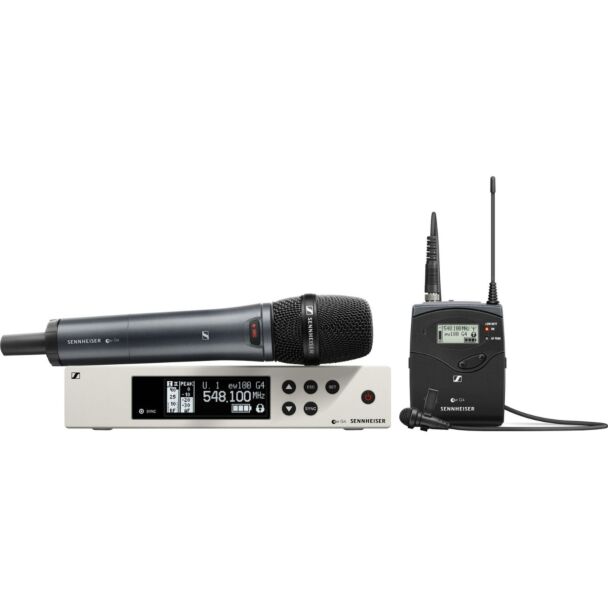

Sennheiser EW 100 G4-ME2/835-S Wireless Handheld/Lavalier Combo System

Overview

Features

• Engineered for professional live sound: Rugged all-in-one combo wireless system for singers, presenters and moderators.

• Dynamic handheld microphone e 835, robust bodypack transmitter and unobstrusive clip-on microphone ME 2-II (omni-directional) with high speech intelligibility for daily use on stage

• True diversity half-rack receiver in a full-metal housing with intuitive LCD display for full control

• Easy and flexible wireless synchronization between transmitter and receiver via infrared

• Fast frequency allocation for up to 12 receivers via new linking functionality

• Up to 20 compatible channels

• Up to 42 MHz bandwidth with 1680 selectable frequencies, fully tunable in a stable UHF range

• Transmission Range: up to 100 meters / 300 feet

• High RF output power (up to 30 mW) depending on country regulations

What's in the box?

• EM 100 G4
• SK 100 G4
• SKM 100-S G4
• MMD 835-1
• ME 2
• GA 3
• MZQ 1 microphone clamp
• power supply
• 4 AA batteries
• 2 rod antennas
• RJ 10
• quick guide
• safety guide
• manufacturer declaration sheet
• frequency supplement sheet

Technical Data

EM 100 G4

• Frequency range

  A1: 470 - 516 MHz
  A: 516 - 558 MHz
  AS: 520 - 558 MHz
  GB: 606 - 648 MHz
  G: 566 - 608 MHz
  B: 626 - 668 MHz
  C: 734 - 776 MHz
  D: 780 - 822 MHz
  E: 823 - 865 MHz
  1G8: 1785 - 1800 MHz

• Dimensions

  Approx. 190 x 212 x 43 mm

• Compander

  Sennheiser HDX

• • THD, total harmonic distortion

    ≤ 0.9 %

  • Weight

    Approx. 980 g

  • Audio output

    6.3 mm jack socket (unbalanced): +12 dBu
    XLR socket (balanced): +18 dBu

  • Signal-to-noise ratio

    ≥ 110 dBA

  • Switching bandwidth

    up to 42 MHz

  • Peak deviation

    ±48 kHz

  • Nominal deviation

    ±24 kHz

  • Modulation

    Wideband FM

  • Power supply

    12 V DC

  • Antenna connector

    2 BNC sockets

  • Current consumption

    300 mA

  • Adjacent channel rejection

    Typically ≥ 65 dB

  • Intermodulation attenuation

    Typically ≥ 65 dB

  • Receiving frequency

    Max. 1680 receiving frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels

  • RF sensitivity

    < 2.5 μV for 52 dBA eff S/N

  • Squelch

    low: 5 dBµV, middle: 15 dBµV, high: 25 dBμV

  • Equalizer

    Preset 1: Flat
    Preset 2: Low Cut (-3 dB at 180 Hz)
    Preset 3: Low Cut/High Boost (-3 dB at 180 Hz, +6 dB at 10 kHz)
    Preset 4: High Boost (+6 dB at 10 kHz)

  • Temperature Range

    -10 °C to +55 °C

  • Receiver Principle

    True diversity

  • Blocking

    ≥ 70 dB

SK 100 G4

• Dimensions

  Approx. 82 x 64 x 24 mm

• Compander

  Sennheiser HDX

• THD, total harmonic distortion

  ≤ 0.9 %

• • Weight

    (incl. batteries) approx. 160 g

  • Signal-to-noise ratio

    ≥ 110 dBA

  • RF output power

    Max. 30 mW

  • Switching bandwidth

    up to 42 MHz

  • Peak deviation

    ±48 kHz

  • Nominal deviation

    ±24 kHz

  • Operating time

    Typically 8 h

  • Modulation

    Wideband FM

  • Power supply

    2 AA batteries, 1.5 V or BA 2015 accupack

  • Current consumption

    at nominal voltage: typ. 180 mA
    with transmitter switched off: ≤ 25 µA

  • Input impedance

    40 kΩ, unbalanced / 1 MΩ

  • Max. Input voltage

    3 Veff

  • Powering

    3 V battery / 2.4 V rechargeable battery

  • Transmission frequency

    Max. 1680 transmitting frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels

  • AF frequency response

    Mic: 80 – 18,000 Hz, Line: 25 – 18,000 Hz

  • Temperature Range

    -10 °C to +55 °C

  • Frequency stability

    ≤ ±15 ppm

SKM 100 G4-S

• Dimensions

  Approx. Ø 50 x 265 mm

• Compander

  Sennheiser HDX

• THD, total harmonic distortion

  ≤ 0.9 %

• • Weight

    (incl. batteries) approx. 450 g

  • Signal-to-noise ratio

    ≥ 110 dBA

  • RF output power

    Max. 30 mW

  • Switching bandwidth

    up to 42 MHz

  • Peak deviation

    ±48 kHz

  • Nominal deviation

    ±24 kHz

  • Operating time

    Typically 8 h

  • Modulation

    Wideband FM

  • Power supply

    2 AA batteries, 1.5 V or BA 2015 accupack

  • Current consumption

    at nominal voltage: typ. 180 mA
    with transmitter switched off: ≤ 25 µA

  • Input impedance

    40 kΩ

  • Max. Input voltage

    3 Veff

  • Powering

    3 V battery / 2.4 V rechargeable battery

  • Transmission frequency

    Max. 1680 transmitting frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels

  • AF frequency response

    80 – 18,000 Hz

  • Temperature Range

    -10 °C to +55 °C

  • Frequency stability

    ≤ ±15 p

ME 2

• Connector

  3.5 mm jack

• Frequency response

  50 to 18,000 Hz (ME 2-II)

• Max. sound pressure level

  130 dB

• • Cable length

    approx. 1.60 m

  • Transducer principle

    pre-polarized condensor microphone

  • Pick-up pattern

    omni-directional

  • Sensitivity in free field, no load (1kHz)

    20 mV/Pa

  • Equivalent noise level

    36 dB

MMD 835-1

• Sound pressure level (SPL)

  154 dB SPL

• Transducer principle

  dynamic

• Pick-up pattern

  cardioid

• • Sensitivity

    2.1 mV/Pa
