EM 100 G3 rack-mount receiver SKM 100-865 G3 handheld transmitter (condenser, super-cardioid) MZQ 1 microphone clip NT 2 power supply unit 2 antennas 2 stacking elements 2 AA batteries Operating instructions

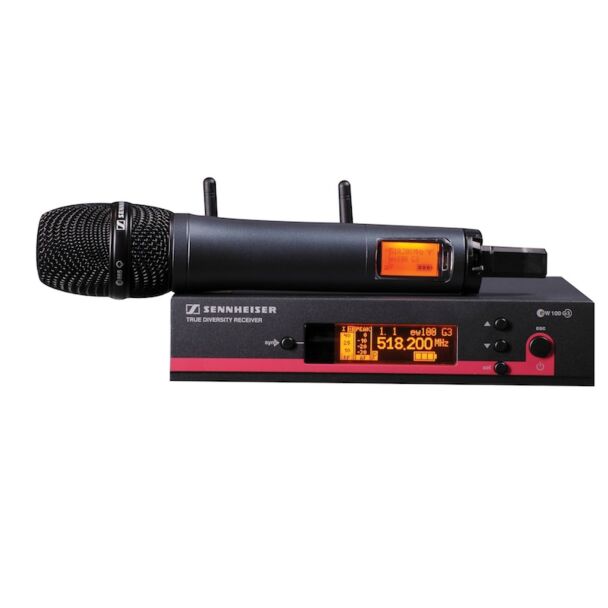

Sennheiser EW165 G3 Wireless Microphone System Condenser microphone technology designed for the stage: This system’s microphone capsule is based on the well-known evolution e 865 condenser. With a wide frequency response and high sensitivity, this is the elite handheld model in the G3 100 series. With excellent sound and simple operation, this system delivers all the emotion and passion of the performer directly to the audience - without making any compromises.
|UPC (Universal Product Code)||00615104153547|
|MPN (manufacturer part number)||EW165G3|
Sturdy metal housing (transmitter and receiver) 42 MHz bandwidth: 1680 tunable UHF frequencies for interference-free reception Enhanced frequency bank system with up to 12 compatible frequencies High-quality true diversity reception Pilot tone squelch for eliminating RF interference when transmitter is turned off Automatic frequency scan feature searches for available frequencies Enhanced AF frequency range Increased range for audio sensitivity Wireless synchronization of transmitters via infrared interface User-friendly menu operation with more control options Illuminated graphic display (transmitter and receiver) Auto-Lock function avoids accidental changing of settings HDX compander for crystal-clear sound Transmitter feature battery indicatation in 4 steps, also shown on receiver display Handheld transmitter with easy-exchangeable microphone modules from evolution series Integrated Equalizer and Soundcheck mode Contacts for recharging BA 2015 accupack directly in the transmitter Wide range of accessories adapts the system to any requirement
RF frequency range 516 - 865 MHz Transmission/receiving frequencies 1,680 Presets 12 Switching bandwidth 42 MHz Peak deviation ± 48 kHz Compander HDX Frequency response (microphone) 80 - 18,000 Hz Signal-to-noise-ratio > 110 dB(A) Total harmonic distortion (THD) < 0.9% In compliance with ETS 300422 , ETS 300445 , CE , FCC Antenna connector 2 BNC, 50Ω XLR connector 6.3 mm Audio output level (balanced) XLR: +18 dBu max Audio output level (unbalanced) Jack: +10 dBu max Dimensions (receiver) 8.3 x 8 x 1.7 in. (212 x 202 x 43 mm) Weight (receiver) 2 oz (900 g) RF output power 30 mW Operating time (transmitter) typ. 8 h Dimensions (transmitter) d=2 in. (50 mm), l=10.4 in. (265 mm) Weight (transmitter) 15.9 oz. (450 g) Transducer / microphone type Electret-condenser AF sensitivity 1.6 mV/Pa Sound pressure level (SPL) 152 dB(SPL) max. Pick-up pattern super-cardioid
