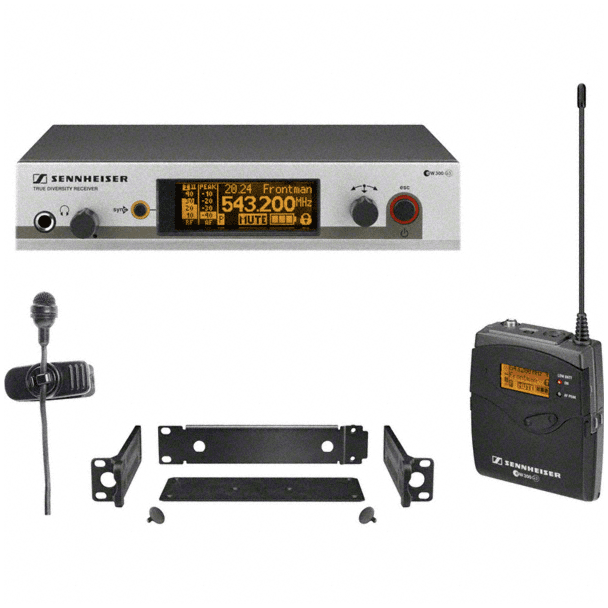

-1 EM 300 G3 rack-mount receiver -1 SK 300 G3 bodypack transmitter -1 ME 4 clip-on microphone (cardioid)
Sennheiser EW322 G3 Wireless Lavalier Microphone System Small but mighty: the clip-on microphone in this professional set is nearly invisible. The included cardioid pattern microphone has both great resistance to feedback and clear voice reproduction. The true diversity receiver means you get the highest degree of signal reliability at all times. Sync up the bodypack with the receiver with a single touch of a button. Especially convenient: you can connect an external mute button (option) to the additional 2.5 mm jack socket on the bodypack transmitter.
|UPC (Universal Product Code)||00615104154940|
|MPN (manufacturer part number)||EW322G3|
Sturdy metal housing (transmitter and receiver 42 MHz bandwidth: 1680 tunable UHF frequencies for interference-free reception Enhanced frequency bank system with up to 24 compatible frequencies Ethernet port for connecting to the Wireless Systems Manager (WSM) software for control via computer - this delivers a good overview of monitoring and professional data management for multi-channel systems High-quality true diversity reception Pilot tone squelch for eliminating RF interference when transmitter is turned off Automatic frequency scan feature searches for available frequencies Enhanced AF frequency range Increased range for audio sensitivity Wireless synchronization of transmitter parameter from receiver User-friendly menu operation with more control options Illuminated graphic display, receiver also shows transmitter settings Auto-Lock function avoids accidental changing of settings HDX compander for crystal-clear sound Transmitter feature battery indicatation in 4 steps, also shown on receiver display Programmable Mute function Integrated Equalizer and Soundcheck mode Contacts for recharging BA 2015 accupack directly in the transmitter Wide range of accessories adapts the system to any requirement
Frequency range 566...608 MHz / Power supply unit EU 566...608 MHz / Power supply unit US 626...668 MHz / Power supply unit EU 626...668 MHz / Power supply unit US 734...776 MHz / Power supply unit EU 734...776 MHz / Power supply unit US 780...822 MHz / Power supply unit EU 780...822 MHz / Power supply unit EU / Germany 780...822 MHz / Power supply unit UK 823...865 MHz / Power supply unit EU 823...865 MHz / Power supply unit EU / Germany 516...558 MHz / Power supply unit EU 823...865 MHz / Power supply unit UK 606...648 MHz Frequency range 516...558 MHz / Power supply unit US Frequency response (microphone) 80.....18000 Hz Compander HDX Audio-XLR connector 6,3 mm Presets 24 Microphone elektret Sound pressure level (SPL) 120 dB(SPL) max. THD, total harmonic distortion < 0,9 % AF sensitivity 40 mV/Pa Signal-to-noise ratio > 115 dB(A) RF frequency range 516..... 865 MHz RF output power 10/30 mW Transmission/receiving frequencies 1680 Switching bandwidth 42 MHz Peak deviation +/- 48 kHz In compliance with ETS 300422 , ETS 300445 , CE , FCC Antenna connector 2 BNC, 50 Ohm Input voltage range 1,8 V line 2,4 V line Audio output level unbalanced: Jack: +12 dBu max balanced: XLR: +18 dBu max Transmitter Technical Data and Specification of ew 322 G3 Article No. 503345 Dimensions 82 x 64 x 24 mm Weight ~ 160 g Operating time > 8 h Receivers Technical Data and Specification of ew 322 G3 Article No. 503345 Dimensions 212 x 202 x 43 mm Weight 980 g What's in the box? 1 EM 300 G3 rack-mount receiver 1 SK 300 G3 bodypack transmitter 1 ME 4 clip-on microphone (cardioid) 1 GA 3 rack mount 1 NT 2 power supply unit 2 antennas 2 AA batteries Operating instructions
