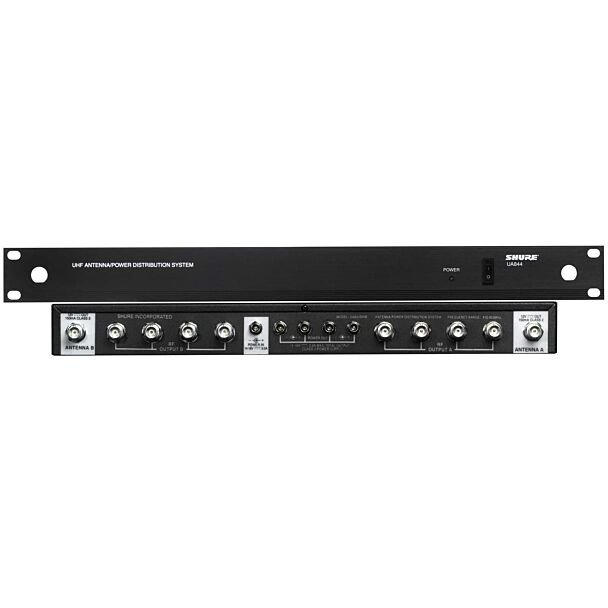

Shure UA844+SWB - Antenna Splitter and Power Distribution System

Special Price $499.00 Regular Price $569.00

discount



SKU
SHURE-UA844+SWB


-5-way Active Antenna Splitter

-Power Distribution System

-Antenna Cables and Locking Power Cables

-470-952MHz

Wideband UHF (470-952 MHz) Five-Way Active Antenna Splitter and Power Distribution System, external power supply. For QLX-D®, ULX®, ULX-D®, SLX®, and BLX® (BLX4R only) receivers.

Product Details

The Shure Model UA844+ is an antenna distribution system that allows for the expansion of wireless microphone systems by splitting one pair of antennas to multiple receivers. It also amplifies RF signals to compensate for insertion loss that results from splitting signal power to multiple outputs. A single UA844+ system can support up to five wireless receivers. A maximum of five UA844+ systems may be used in a two-tiered configuration.

Model Number: UA844+SWB (replaces discontinued model UA844US)

The UA844+SWB/LC option comes with the five push on DC cables and no antenna cables. It is recommended for use with the BLXR, SLX, and QLX-D wireless systems. To connect the receiver antenna ports to the UA844+SWB/LC, use the BNC-BNC antenna cables supplied with each BLXR, SLX, QLX-D wireless systems.

Features

  • Five-way RF signal output
  • Support QLX-D®, ULX®, ULX-D®, SLX®, and BLX® (BLX4R only) receivers
  • Front-mounting antenna hardware
  • Rack-mounting hardware
  • 4 DC power feeds and for receivers (15V, 2.5A max)
  • DC outputs for antenna bias (12V, 300mA max)

UA844+ models include:

  • 1 UA844+ Antenna/Power Distribution System
  • 1 PS45 power supply
  • 4 Locking DC power cables (for ULX4D, ULXP4)
  • 4 Non-locking DC power cables (for QLXD4, SLX4, BLX4R)
  • Ten 22 in. BNC cables
  • Two 6 ft. BNC cables
  • 2 Bulkhead adaptors
  • 1 Rack mount Hardware kit
  • 1 Literature Package

UA844+/LC (less cable) models includes:

  • 1 UA844+ Antenna/Power Distribution System
  • 1 PS45 power supply
  • 4 Non-locking DC power cables (for QLXD4, SLX4, BLX4R)
  • Two 22 in. BNC cables
  • Two 6 ft. BNC cables
  • 2 Bulkhead adaptors
  • 1 Rack mount Hardware kit
  • 1 Literature Package

Available Options

UA844+SWB Wideband Antenna Distributor with Power Cables
UA844+SWB/LC Wideband Antenna Distributor with five push-on DC cables and no antenna cables
More Information
SKU SHURE-UA844+SWB
Freeshipping Free Shipping
UPC (Universal Product Code) 00042406461528
MPN (manufacturer part number) UA844+SWB
Discount INSTANT SAVINGS: 10% OFF
Condition New
Features N/A
Specs N/A
Producut Video N/A
