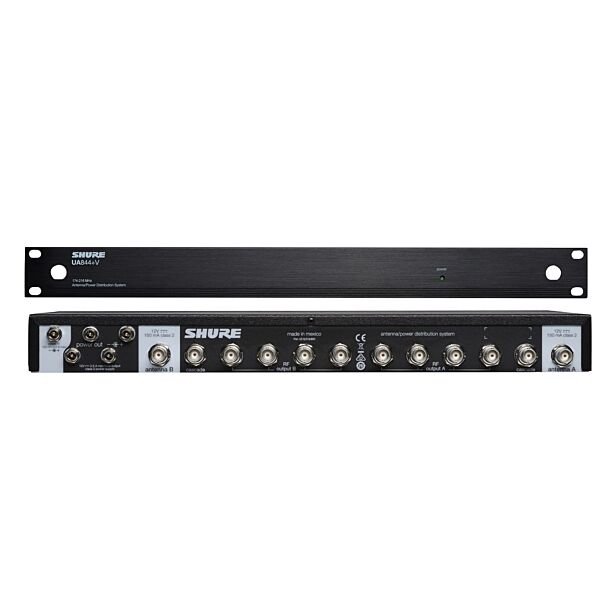

Shure UA844+V - VHF Antenna/Power Distribution System

Special Price $469.00 Regular Price $575.00




SKU
SHURE-UA844+V


-Five-Way RF Signal Output
-For VHF QLX-D and ULX-D Receivers
-Front-Mounting Antenna Hardware
-4 Power Feeds for 15 VDC Receivers
-Outputs for Antenna Bias (12 VDC, 300mA)

The Shure Model UA844+V is an antenna distribution system that allows for the expansion of wireless microphone systems by splitting one pair of antennas to multiple receivers. 174-216 MHz (VHF)

Product Details

The Shure Model UA844+V is an antenna distribution system that allows for the expansion of wireless microphone systems by splitting one pair of antennas to multiple receivers. It also amplifies RF signals to compensate for insertion loss that results from splitting signal power to multiple outputs. A single UA844+V system can support up to five wireless receivers. A maximum of five UA844+V systems may be used in a two-tiered configuration.

It is recommended for use with VHF options of ULX-D® Digital and QLX-D® Digital Wireless Systems.

The UA844+V/LC option comes with four push-on DC cables with no antenna cables. To connect the receiver antenna ports to the UA844+V/LC, use the BNC-BNC antenna cables supplied with each of the ULX-D and QLX-D wireless systems.




Features

  • Five-way RF signal output
  • Supports VHF QLX-D and ULX-D receivers
  • Front-mounting antenna hardware
  • Rack-mounting hardware
  • 4 DC power feeds and for receivers (15V, 2.5A max)
  • DC outputs for antenna bias (12V, 300mA max)
UA844+V models include:
  • 1 UA844+ Antenna/Power Distribution System
  • 1 PS45 power supply
  • Two 6 ft. BNC cables
  • 2 Bulkhead adapters
  • 1 Rack mount Hardware kit
  • 1 Literature Package
  • 4 Locking DC power cables for ULXD4
  • 4 Non-locking DC power cables for QLXD4
  • Ten 22 in. BNC cables
UA844+V/LC (less cable) models include:
  • 1 UA844+ Antenna/Power Distribution System
  • 1 PS45 power supply
  • Two 6 ft. BNC cables
  • 2 Bulkhead adapters
  • 1 Rack mount Hardware kit
  • 1 Literature Package
  • 4 Non-locking DC power cables for QLXD4
  • Two 22 in. BNC cable

Available Options

UA844+V Antenna Distribution System, Cables Included
UA844+V/LC Antenna Distribution System, Cables Not Included
More Information
SKU SHURE-UA844+V
Freeshipping Free Shipping
UPC (Universal Product Code) 00042406461344
MPN (manufacturer part number) UA844+V
Discount N/A
Condition New
Features N/A
Specs N/A
Producut Video N/A
