Soundcraft Mini Stagebox 32 - 32x12 Digital Stagebox

Special Price $1,999.00 Regular Price $3,500.00

discount



SKU
SOCR-MINI STAGEBOX 32

-32x12 Digital Stagebox with MADI Card

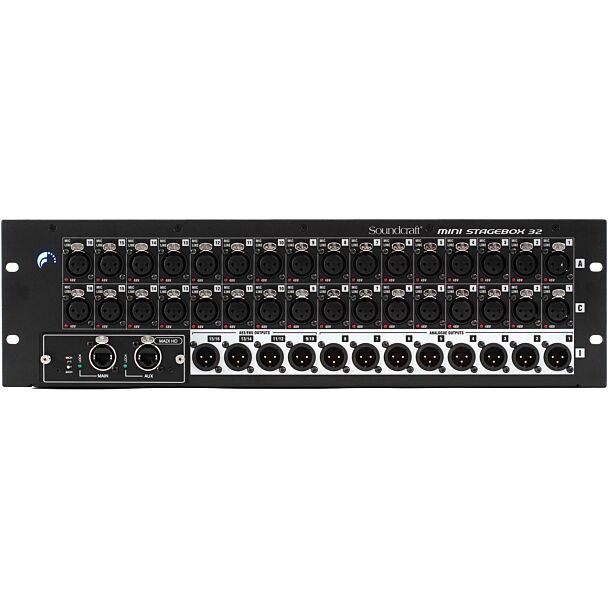

Soundcraft Mini Stagebox 32 - 32x12 Digital Stagebox

The new Mini Stagebox range from Harman's Soundcraft provides a simple solution to stage connectivity offering a lower-cost option for many systems where the modularity and configurability of the larger systems are not required.

The Mini Stagebox 32 (3U) provides 32 analogue inputs and 8 analogue line outputs, with 4 pairs of AES outputs, providing a total I/O capacity of 32 inputs and 16 outputs, with the Mini Stagebox 16 (2U) model providing 16 analogue inputs and 8 line outputs making a 16 x 8 matrix. They connect to any of the Soundcraft Si Expression, Si Compact, Si Performer, Si Series and Vi Series consoles via a MADI card fitted to the option card slot.

The Mini Stagebox models contain an integral PSU so are completely self-contained and sit comfortably stage-side.

The new units are part of the ViSi Connect range of interface options for all Soundcraft mixing consoles which includes the Compact and Vi Stageboxes and a range of option cards such as MADI, AES, CobraNet and AES.

Both models are supplied with the stagebox card installed, plus the corresponding card for an Si series console (Vi console MADI cards sold separately)

More Information
SKU SOCR-MINI STAGEBOX 32
Freeshipping Free Shipping
UPC (Universal Product Code) 0 668705000000
MPN (manufacturer part number) 5049659
Discount INSTANT SAVINGS: 10% OFF
Condition New
Features -32 Expression mic preamps -8 line outs and 4 AES pairs -Dual Cat 5 MADI or dual port optical -Compatible with Soundcraft Si Expression, Si Compact, Si Performer, Si Series and Vi Series consoles -Includes MADII card for SI series consoles
Specs No
Producut Video No
