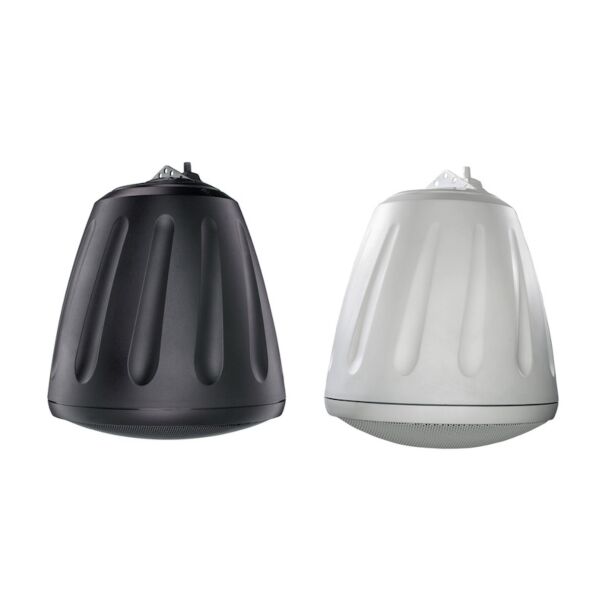

Soundtube RS600i - 6.5″ Coaxial Open-Ceiling Pendant Speaker
Have a Question? Ask an Account Manager
Call us: (516) 597-5450
Email us: [email protected]
One 6.5 inch polypropylene woofer and one 1.0 inch convex titanium tweeter with FerroFluid cooling mounted to a proprietary cast-aluminum baffle and heat sink. Includes UL-listed hanging hardware with galvanized steel cables and integrated SpeedClamp™ self-locking cable grip for fast, easy and secure installation. Also includes Euroblock connector and terminal weather boot. Patented ZeroReflection™ enclosure technology for optimal sound reproduction and cabinet rigidity. Easy access six-position selectable tap switch for 25-, 70.7- and 100-volt applications with transformer bypass position simplifies ordering and inventory tracking. Steel grille with protective powder-coated finish for lasting durability. Average sensitivity of 88.5 dB offers high-output capabilities and reduced amplification costs. UL 1480 (UEAY), 2239 (hanging cable) and Mil-Spec 810 approved.
| Nominal Impedance | 8 ohm |
| Impedance (min) | 4.8 ohm |
| Sensitivity dB @ 2.83V/1M | 88.5dB |
| Sensitivity dB @ 1W/1M (2) | 88.5dB |
| Frequency Response (± 3 dB) | 85 Hz - 17 kHz |
| Frequency Response (±10 dB) | 58 Hz – 22 kHz |
| Max. Program Power | 180W |
| Max. Continuous Power RMS | 90W |
| Max. Power SPL @ 1 M | 108.0dB |
| Directivity Factor (Q) (Averaged 100Hz - 10kHz, @ 2kHz) | 4.7 (Average 100 Hz - 10 kHz) 7.9 (2 kHz) |
| Directivity Index (DI) dB (Averaged 100Hz - 10kHz, @ 2kHz) | 5.7dB (Average 100 Hz - 10 kHz) 9.0dB (2 kHz) |
| Tap Selector | 6 Position rotary switch with transformer bypass |
| 70.7 Volt Transformer Taps | 33w / 103.5dB |
| 100 Volt Transformer Taps (dB) | 33w / 103.5dB |
| 25 Volt Transformer Taps (dB) | 5w / 95.5dB |
| Transformer Options | 25 / 70.7 / 100 Volt with voice coil / 8 Ohm direct |
| Transducer - Low Frequency Driver | 6.5" Polypropylene Cone with Butyl Rubber Surround |
| Transducer - High Frequency Driver | 1" Convex Titanium Tweeter w/ Waveguide |
| Network Type: Low Pass | 12dB per octave, 2nd order |
| Network Type: High Pass | 12dB per octave, 2nd order |
| Angle | 100 |
| Coverage Angle (-6 dB @ 2 kHz) | 100 |
| Colors | Black or white |
| Inputs | 4 Pin, 5.08 mm Euroblock for individual or daisy chain connection |
| Height (SM = Height) | 363.5 mm / 14.3 in |
| Diameter (SM = Width) | 307.3 mm / 12.1 in |
| Weight | 6.1 kg / 13.4 lb |
| Shipping Weight | 7.5 kg / 16.5 lb |
| Accessories Optional | Surface-Mount Bracket (AC-RS-SM6), |
| Packaging | 1 per box |
| Regulatory - UL | Approved UL1480A |
| Regulatory - CE | Approved |
| Regulatory - RoHS | approved |
| Regulatory - IP | not planned |
| Condition | New |
|---|---|
| MPN (manufacturer part number) | RS600i |
