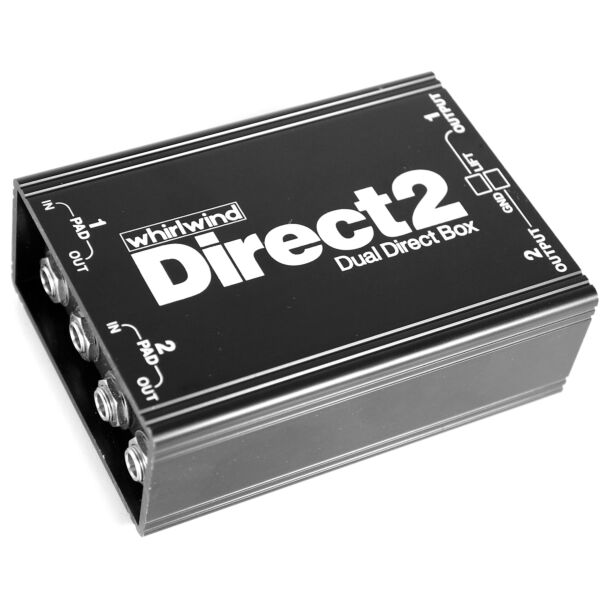

Whirlwind Direct 2 - 2-Channel Direct Box
The DIRECT2 is a two channel, passive direct box from Whirlwind that converts unbalanced line, instrument or speaker level signals to low impedance balanced microphone levels, which are then suitable for imputing to a console or microphone preamp.
The unit is a passive device and therefore requires no external power supply. Each channel features a ground lift switch and a 20dB pad for selecting between line/instrument or speaker level signals.
The input and output grounds of each section are isolated from each other. This allows the DIRECT2 to be used as if it were two completely separate DIs without fear of creating ground loop interaction.
Note! When connecting to speaker outputs, the Direct2 does not supply the proper amplifier load required by most tube type amplifiers. A speaker or appropriate dummy load must be connected to avoid possible damage to the amplifier.
|UPC (Universal Product Code)||0 692465000000|
|MPN (manufacturer part number)||DIRECT2|
|Features||-1/4" parallel wired in/out jacks -Ground Lift switch to help eliminate hum and buzz -20dB pad switch for selecting between line/instrument or speaker level input signals -Uses Whirlwind's TRHL-M transformer with metal shield|
