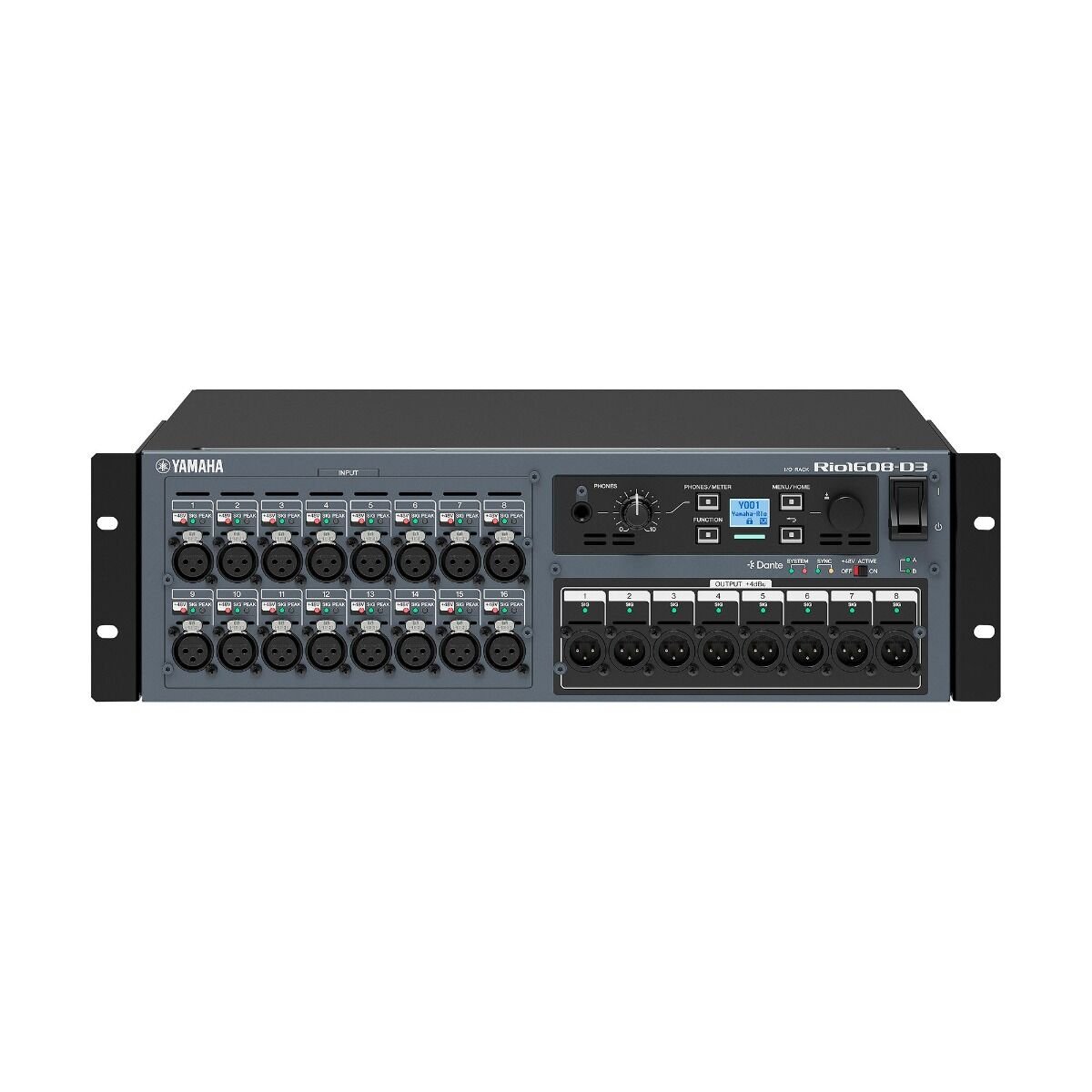

Yamaha Rio1608-D3 16x8 Dante Stage Box
- Analog I/O: 16 inputs / 8 outputs
- Dante: 10 receive / 16 transmit channels
- Comprehensive display and local control of gain, delay and other parameters.
- Dual power supply units are built in for high reliability.
- Onboard headphone socket
Have a Question? Ask an Account Manager
Call us: (516) 597-5450
Or: Conatct Us
The Yamaha Rio1608-D3 is a third-generation, high-performance Dante-compatible I/O rack designed to integrate seamlessly with Yamaha digital mixing systems such as the CL, QL, RIVAGE PM, and DM7 series. It offers enhanced sound quality, improved functionality, and greater energy efficiency compared to its predecessors.
Key Features
-
Analog I/O: 16 inputs and 8 outputs
-
Dante Network: 10 receive and 16 transmit channels
-
Sampling Rates: Supports 44.1 kHz, 48 kHz, 88.2 kHz, and 96 kHz
-
Signal Delay: Less than 1.7 ms when connected with DM7 using Dante at 96 kHz
-
Head Amplifiers: 16 transparent head amps with switchable 48V phantom power
-
Control Interface: Front-panel display for local control of gain, delay, and other parameters
-
Redundancy: Dual built-in power supplies for high reliability
-
Additional Features: Onboard headphone output and output delay functionality
-
Specifications
-
Power Consumption: 60 W
-
Dimensions: 480 x 132 x 370 mm (18.9” x 5.2” x 14.6”)
-
Weight: 9.4 kg (20.7 lb)
This unit is ideal for live sound applications and fixed installations requiring flexible, high-quality audio networking.
| Condition | New |
|---|---|
| MPN (manufacturer part number) | RIO1608-D3 |
