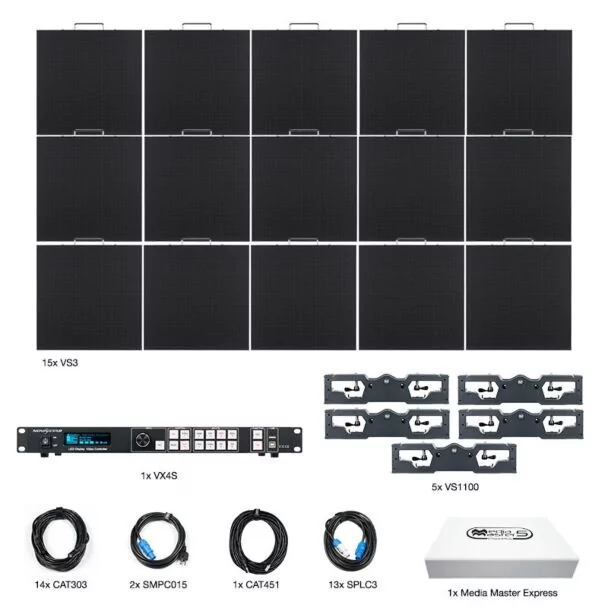

ADJ VS3 5X3 - LED Video Panel System

Introducing the ADJ VS3 5x3 Video Panel System, an innovative solution for creating captivating visual displays in various entertainment and professional settings. Crafted by American DJ, renowned for cutting-edge lighting and video technologies, the VS3 offers unparalleled versatility, exceptional image quality, and effortless control for seamless integration into any production environment.

Exceptional Visual Performance:
The VS3 Video Panel System features a grid of high-resolution LED panels, boasting a pixel pitch of 3.91mm, ensuring stunning image clarity and detail. With vibrant colors, high brightness levels, and wide viewing angles, the VS3 delivers immersive visual experiences that captivate audiences in concerts, events, installations, and more.

Modular Design for Flexibility:
Designed with a modular approach, the VS3 panels are easily assembled and configured to create custom screen layouts tailored to specific stage designs and venue requirements. Each panel measures 500mm x 500mm, allowing for effortless customization and scalability, making it suitable for both small-scale setups and large-scale productions.

Seamless Integration and Control:
The VS3 seamlessly integrates with video processors, media servers, and lighting consoles, offering comprehensive control options for managing visual content with precision. Compatible with various video input formats, including HDMI, DVI, and SDI, the system ensures seamless compatibility with a wide range of multimedia sources for hassle-free operation.

Intuitive Software and User Interface:
Featuring user-friendly software and intuitive control interfaces, the VS3 Video Panel System empowers users to create dynamic visual displays effortlessly. With advanced programming capabilities, customizable content options, and real-time playback controls, users can unleash their creativity and bring their vision to life with ease.

Versatile Applications:
From concerts, festivals, and live events to nightclubs, theaters, and corporate presentations, the VS3 Video Panel System offers endless possibilities for creative expression and visual enhancement. Its versatility makes it suitable for a wide range of applications, including stage backdrops, video walls, DJ booths, and architectural installations.

Robust Construction for Reliability:
Crafted from high-quality materials and built to withstand the rigors of professional use, the VS3 Video Panel System ensures durability and reliability in demanding environments. Its rugged construction, lightweight design, and efficient heat management guarantee consistent performance and peace of mind during every production.

In summary, the ADJ VS3 5x3 Video Panel System combines superior image quality, flexible design options, intuitive control features, and robust construction to deliver unmatched visual performance in any production setting. With its seamless integration, versatile applications, and effortless operation, the VS3 empowers users to create unforgettable visual experiences that leave a lasting impression on audiences. Elevate your productions with the ADJ VS3 Video Panel System.

SPECIFICATIONS:

• Pixel Pitch: 3.91mm (0.15”)
• LED Configuration: 3-in-1 SMD2121 LED
• Pixel Density: 128x128; 65536 per square meter
• Size :19.68” x 19.68” x 2.74” / 500 x 500 x 69.6mm
• Module Quantity: 4
• Weight: 17 lbs. / 7.7kg.

FEATURES:
• Corner Protectors to protect the corners of the VS3 during transport, set-up and teardown
• Front and rear serviceable: 4 easy to replace video modules on each panel
• Magnets on top/bottom to temporarily connect panels before latching together allowing a single user to install an entire wall

MECHANICAL RATINGS:
• Surface Flatness: Gaps<0.5mm

OPTICAL RATINGS:
• Brightness: 1000 NITS
• View Angle: Horizontal 160°/Vertical 140° @ 9.75 ft. (3m)
• Gray Scale: ≥14-bit
• Display Color: 256
• Brightness Adjustment: 0~100% 100 Levels
• Contrast ratio: 5000:1
• Processing: 14-bit

POWER SUPPLY:
• Operation Power: 100~240V 50-60Hz
• Max. Power Consumption: 170W/per panel
• Ave. Power Consumption: 68W/per panel
• Connections Power/Data: Power-PowerLock In/Out; DataLock In/Out

CONTROL SYSTEM:
• Control Mode: Nova Star Synchronous System with Control via DVI
• Frame Update Frequency: 50-75Hz
• Scan Mode: 1/16
• Refresh Rate: 3840Hz
• Support Input: Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI
• Control Distance: Ethernet Cable <120m or Fiber Optic>120m
• Support VGA Mode: 1024 x 768, 1280 x 1024, 1600 x 1200, 1920 x 1280
• Brightness Correction: Pixel, Module, Cabinet

ENVIRONMENTAL:
• Operating Temp / Humidity: Fahrenheit: -4° + 104° / Celsius: -20° + 40°/ 10-90% (No Condensation)
• Operating Life / MTBF: 50,000 Hours / 5,000 Hours
• Protection Level: IP20 (Front and Back)
• Out of Control Rate: <0.02%

OPTIONAL ACCESSORIES FOR VS2, VS3 & VS5 VIDEO PANELS:
• VSFC8 (VS8100): Flight Case – Fits 8 Vision Series Video Panels
• VSRB1 (VS1100): Rigging Bar – Hang up to 20 Vision Series Video Panels vertically
• VSMRT (VSM111): Module Removal tool - Magnetically assists the tech in removing modules from the front side when servicing.
• VSRQR (VSM210): Quick Rig - Attaches and locks on to the rear of any Vision series panel so it can be fastened to a 2" pipe or truss
• VS1RSB (VS1126) Rear Support Bracket for VS Series Panels
• VSSCSB VSSCSB): Single Column Support Base
• VSGSB (VSG100): Ground Support Base
• VSGSLT (VSGSLT): Ground Support Ladder Truss
• VSGSCSB (VSG155): Clamp Support Bar

• Novastar VX4S: Video Processor
• Novastar MCTRL-300: Video Processor
• Novastar Nova Pro HD: Video Processor
• Arkaos Media Master: Video Software
• Arkaos GrandVJ 2.0: Video Software

CABLES:
• Cabinet to Cabinet Data Link Cables (Ethernet Locking Connectors)
• Power Locking Link Cables
• Power Locking Main Power Cables

CERTIFICATIONS:
• cETLus approved (Control #5015975)
