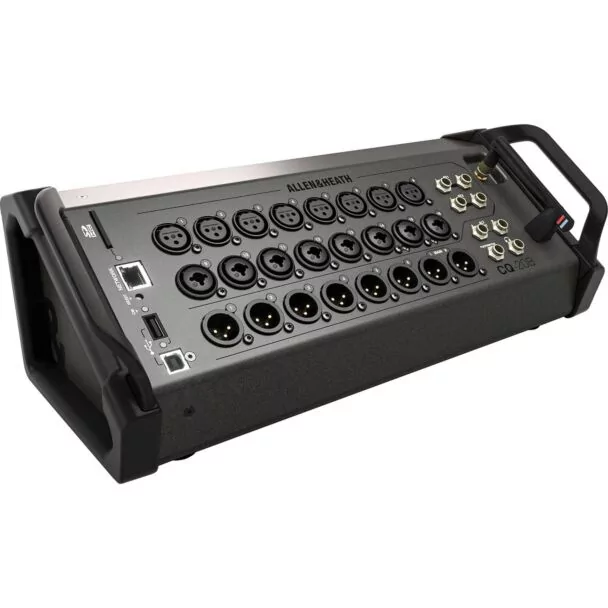

Allen & Heath CQ-20B 20x8 Digital Rackmount Mixer with Wi-Fi

  • 16 Mic/Line Inputs + 4 x 1/4" Inputs
  • 2 XLR Main + 6 XLR Mix + 2 1/4" Outputs
  • 24x24 USB-B Audio Interface
  • 24x24 Multitrack Rec/Playback via SD
  • Stereo USB Rec/Playback + Bluetooth In
  • CQ-MixPad Control App
  • 96 kHz FPGA Processor with Built-In FX
  • AMM, Feedback, FX Assist Engines
Special Price $999.99 Regular Price $1,249.00
Account manager

Have a Question? Ask an Account Manager

Designed for life on the stage, CQ-20B is the highest channel-count mixer in the range and is controlled via the free CQ MixPad app.

Play Video

Mix Smarter. Work Faster. Sound Better.

CQ takes our renowned processing and effects, adds exciting new assistive mixing tools, and packages it all up into our smallest, and most affordable, digital mixer series yet.

Quick and Complete

Pick Your Mixing Style

Every input channel on CQ can be switched between two modes.

Quick Channels offer instrument and application specific processing with the ability to dial in a full channel of processing via a single knob.

Need more control? Switch to Complete Channels for advanced, in-depth tweaking of parameters.

Gain Assistant

Faster Setups

Setting the correct amount of gain for each channel isn’t the most exciting task, and it quickly eats into your setup time with multiple channels to take care of.

CQ’s Gain Assistant quickly and accurately sets the optimal gain level for your one or multiple channels and continues to monitor levels during the performance to prevent any nasty peaks or surprises.

Feedback Assistant

Say Goodbye to Feedback

CQ’s Feedback Assistant automatically detects and eliminates problem frequencies using up to 16 filters per output so you can mix with confidence – and forget about feedback.

CQ-20B Features

  • Inputs
    • 8 XLR
    • 8 XLR/TRS Combi
    • 4 TRS (stereo)
  • Outputs
    • 2 XLR (Main)
    • 6 XLR (Monitors)
    • Assignable Alt Out
  • 24×24 USB-B interface (48/96kHz)
  • SD record/playback
    • 24×24 (48kHz)
    • 16x16 (96kHz)
  • Stereo USB record/playback with dedicated input channel
  • Stereo Bluetooth playback with dedicated input channel
  • 4 FX engines
  • Dual Footswitch connection
  • Assignable TRS headphone output
  • Built-in dual band 2.4G/5G AC Wi-Fi with auto channel select

More Information

More Information
MPN (manufacturer part number)AH-CQ20B
UPC (Universal Product Code)6938122251618
