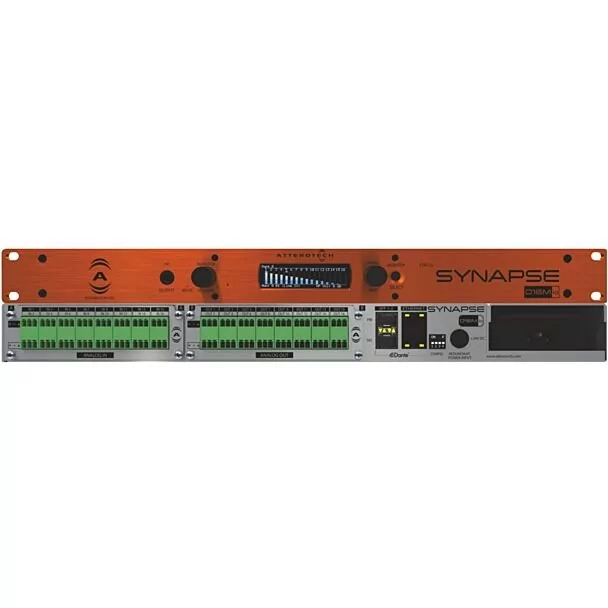

Attero Tech by QSC Synapse D16Mio - Dante/AES67 networked audio interface
Have a Question? Ask an Account Manager
Call us: (516) 597-5450
Or: Conatct Us
16x16 Channel Mic/Line I/O Dante/AES67 Interface, 1RU
The Attero Tech Synapse D16Mio is a high-performance networked audio interface supporting Dante™ with AES67 interoperability. The D16Mio features 16 channels of studio grade microphone preamplifers, with up to 51 dB of digitally controlled gain in 3 dB steps. Each microphone input also supports +48 V switchable phantom power and a switchable pad for accommodation of professional line level inputs. The balanced line level outputs feature digitally controlled output attenuation from 0 to -100 dB.
Key Features
- 16 studio-grade mic preamps with line level capability
- Front panel or network control of mic preamp gain, phantom power, mic/line input sensitivity
- 16 line level balanced outputs with front panel or network level control
- Available Q-SYS control plugin– no programming required
Synapse D16Mio Specifications:
| Mic/Line Inputs (16 Channels) | |
| Maximum input level | -43 dBu (max mic gain) +24 dBu (pad active – line mode) |
| Input type | 3-pin depluggable terminal block |
| Analog Outputs (16 Channels) | |
| Maximum output level | +24 dBu |
| Input type | 3.8 mm terminal blocks |
| Dynamic range | >110 dB |
| Headphone Output | |
| Connector | 1/4 in TRS jack |
| Load | 32 Ω minimum |
| Audio Networking | |
| Protocol support | Dante™ with AES67 support |
| Channel count | 16 Dante RX, 16 Dante TX |
| Ports | 2 - Gb Copper on RJ-45, 2 - Gb SFP |
| Sample rates | 16/24-bit, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz |
| General | |
| Dimensions (HWD) | 1 RU form factor 1.75 x 19 x 12.5 in (44.5 x 482.6 x 5080 mm) |
| Weight | 6 lb (2.72 kg) |
| Condition | New |
|---|---|
| MPN (manufacturer part number) | D16Mio |
