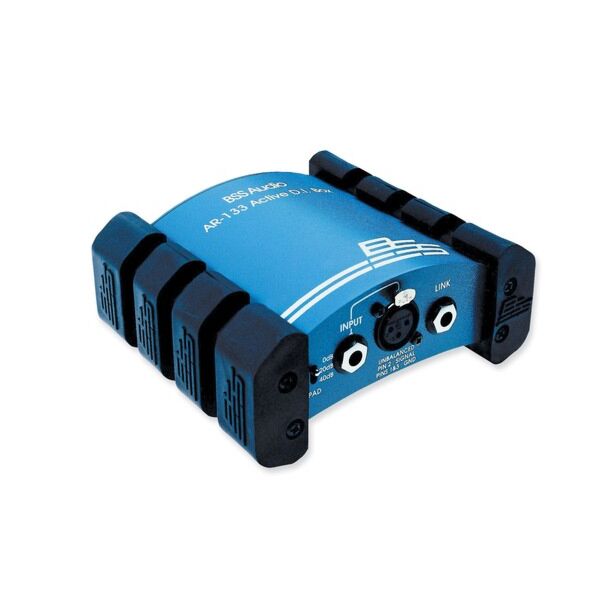

BSS AR-133 Active DI Box

  • Manufacturer: BSS

Switchable input attenuation 0dB for guitar-type pickups -20dB for line level signals -40dB for speaker feeds Matches the level and impedance with unity gain without

More Information
MPN (manufacturer part number)AR-133
UPC (Universal Product Code)00691991600005
SpecsInput Section Input Impedance 1M Ohm (pad at 0dB) 47k Ohm (pad at -20dB) 47k Ohm (pad at -40dB) Max Input Level +9dBu (pad at 0dB) +29dBu (pad at -20dB) +49dBu (pad at -40dB) Connectors Two Parallel 1/4" jack connectors and a parallel XLR connector (unbalanced) Jack: Tip Hot (+ve) Sleeve Ground XLR: Pin 2 Hot (+ve) Pin 1 & 3 Ground Output Section Output Transformer Balanced Max. Output Level +8dBu into 600 Ohms or greater Connector XLR3-32 or equivalent System Performance Distortion (THD) < 0.005% at 1khz, 0dbu output Noise < -105db unweighted, 22hz-22khz, rms* Frequency Response 30Hz to 20kHz, +0dB/-1dB General Main/Standby battery 9 volt PP3 type, preferably alkaline. Current drain on phantom - less than 7.5mA on battery - less than 2mA. Phantom Power +20 volts DC to +48 volts DC Weight 650 gms, excluding batteries. Overall Dimensions 59 mm x 124 mm x 143 mm (2.3" x 4.9" x 5.6")
