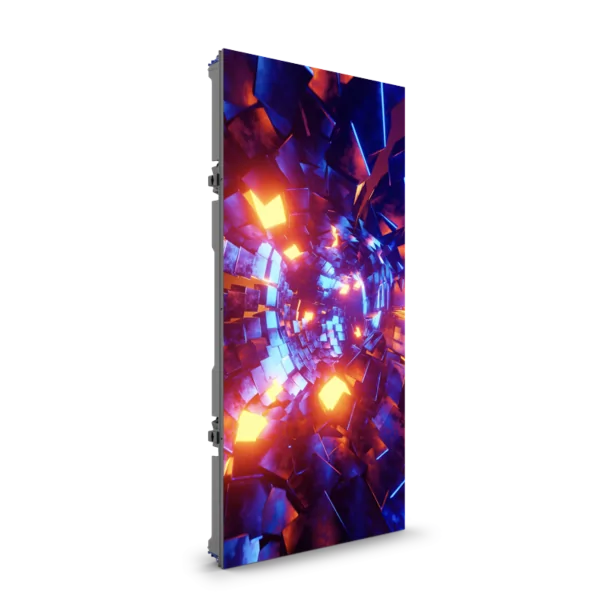

Chauvet Professional REM 3IP - SMD LED Video Panel 4-Pack
- 4 x REM 3IP Video Wall Panels
- 4 x etherCON Linking Cables
- 4 x powerCON Linking Cables
- Flight Case
Have a Question? Ask an Account Manager
Call us: (516) 597-5450
Or: Conatct Us
AT A GLANCE
3.9 mm pitch, high resolution, modular, indoor/outdoor hybrid video panel
Map and scale your wall with the Novastar MX40 Pro sender
Universal, magnetic LED modules for easy replacement and servicing
Magnetic-assisted hanging integrated into frames makes building a screen fast and easy with minimal labor/effort required
REM3IP offered in two physical sizes: 1 m x 0.5 m, 0.5 x 0.5 m (special order)
Integrated curving capabilities for concave and convex configurations
Spring-loaded corner protection for safe transportation and handling
Operating in the DCI-P3 color space and driven via the premium A10s Pro receiver card from Novastar, black body LEDs accurately reproduce video at 22-bit+ grayscale and a wide color gamut
High performance LED drivers deliver 7,680 Hz refresh rate for camera-friendly operation in high-demand applications
Low latency and HDR10 supported for VR/XR studio, live applications
Design allows for overhead hanging, ground stacking, and wall mounting, maximized for multiple applications
Specialized anti-reflective coating applied to the front of LED modules ensures optimal viewing comfort
Ground support/stacking system available in scalable road case-GROUNDSUPPORT2KIT
SPECIFICATIONS
OPTICAL
Light Source: 32,768 LEDs (tri-color RGB) SMD 2121, 100,000 hours life expectancy
Color Wavelength: red (615 to 630 nm), green (520 to 535 nm), blue (465 to 480 nm)
Color Space: DCI-P3
Viewing Angle (H/V): 140°/140°
Calibrated Illuminance: 4,500 NITS (calibrated)
Maximum Illuminance: >5,000 NITS (calibration disabled)
Contrast Ratio:
Grayscale: 22-bit+
Receiver Card : A10s Pro
Drive Type : 1/16
Pixels: 128 x 256
Pixel Pitch: 3.9 mm
Minimum Viewing Distance: 7.5 ft (2.3 m)
Pixel Density: 65,536/m2
Display Refresh Rate: 7,680 Hz (S-PWM)
CONSTRUCTION / PHYSICAL
Dimensions: 19.69 x ## x 39.37 in (500 x ## x 1000 mm)
Weight: 31.2 lb (14.15 kg)
Threaded Bolt: M10, 1.5
Exterior Color: Black
Housing Material: Aluminum ADC12
LED Module Material: Glass filled Polycarbonate
Maximum vertical hang: 11 panels
CONNECTIONS
Power Connection: Edison (local) plug to Seetronic® powerKON®
Power Input: Seetronic® powerKON®
Power Output: Seetronic® powerKON®
Data Connectors: Seetronic® etherKON®
Cable Length (signal extension): 4 ft (1.2 m)
Cable Length (power): 4 ft (1.2 m)
Cable Length (power extension): 6 ft (1.8 m)
CONTROL
Control Protocol: Novastar VMP platform
Recommended Processor/Driver: Novastar MX40 Pro
Panel Resolution (L x H): 128 x 256
Maximum Panels/Novastar MX40 Pro (20 ports):
HDR off, 24 Hz
8-bit video source: 50/port, up to 1,000/Processor/Sender
10-bit video source: 37/port, up to 740/Processor/Sender
12-bit video source: 25/port, up to 500/Processor/Sender
HDR off, 30 Hz 8-bit video source: 40/port, up to 800/Processor/Sender 10-bit video source: 30/port, up to 600/Processor/Sender 12-bit video source: 20/port, up to 400/Processor/Sender
HDR off, 60 Hz 8-bit video source: 20/port, up to 400/Processor/Sender 10-bit video source: 15/port, up to 300/Processor/Sender 12-bit video source: 10/port, up to 200/Processor/Sender
HDR off, 120 Hz 8-bit video source: 10/port, up to 200/Processor/Sender 10-bit video source: 7/port, up to 140/Processor/Sender 12-bit video source: 5/port, up to 100/Processor/Sender
HDR off, 144 Hz 8-bit video source: 8/port, up to 160/Processor/Sender 10-bit video source: 6/port, up to 120/Processor/Sender 12-bit video source: 4/port, up to 80/Processor/Sender
Maximum Panels Tall/ Novastar MX40 Pro: (adjust input/source resolution as needed): 4 @ 1080 height 5 @ 1344 height 6 @ 1680 height 8 @ 2160 height
Maximum Panels Wide/ Novastar MX40 Pro: (adjust input/source resolution as needed): 15 @ 1920 wide resolution 30 @ 3840 wide resolution 64 @ 8192 wide resolution
ELECTRICAL
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking: 5 units @ 120 V; 10 units @ 208 V; 11 units @ 230 V
Power and Current: 300 W, 2.5 A @ 120 V, 60 Hz
Power and Current: 300 W, 1.44 A @ 208 V, 60 Hz
Power and Current: 300 W, 1.3 A @ 230 V, 50 Hz
CERTIFICATIONS / QUALIFICATIONS
CE, MET, FCC
MET Listing Number: E113093-1110, E113093-1125
US Safety: UL 60950-1
Canadian Safety: CSA C22.2 No. 60950-1
IP Rating: IP65/IP54
Thermal Dissipation @120V: 1,024 BTU per hour
Thermal Dissipation @ 208V: 1,024 BTU per hour
Thermal Dissipation @ 230V: 1,024 BTU per hour
Operating Temperature: -4 °F to 122 °F (-20 °C to 50 °C)
WHAT'S INCLUDED
4 REM3IP
1 Seetronic® powerKON® power cord
4 Seetronic® powerKON® power linking cords
4 Seetronic® etherKON® signal linking cords
5 pcs spare LED masks
User Manual
REQUIRED ACCESSORIES
Required Software: Nova VMP
Controller (required): Novastar MX40 Pro
Compatible Mounting Options: REM Rig Bar (0.5 m, 1 m lengths offered), M10, 1.5 bolt/clamp (rear or surface mounting), GROUNDSUPPORT2KIT (floor mounting)
OPTIONAL ACCESSORIES
Clamps
Neutrik powerKON cables
Neutrik etherCON cables
REM-RB100CMIP
REM-RB50CMIP
GROUNDSUPPORT2KIT
MT07 Universal Module Removal Tool
Condition | New |
---|---|
MPN (manufacturer part number) | REM3IPX4 |
