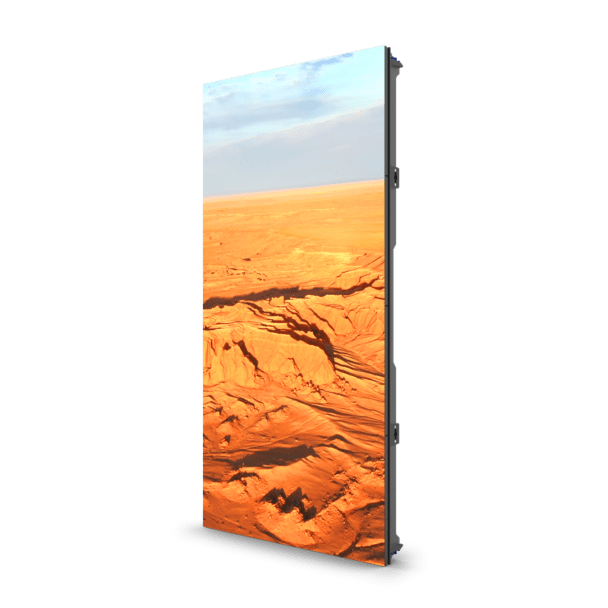

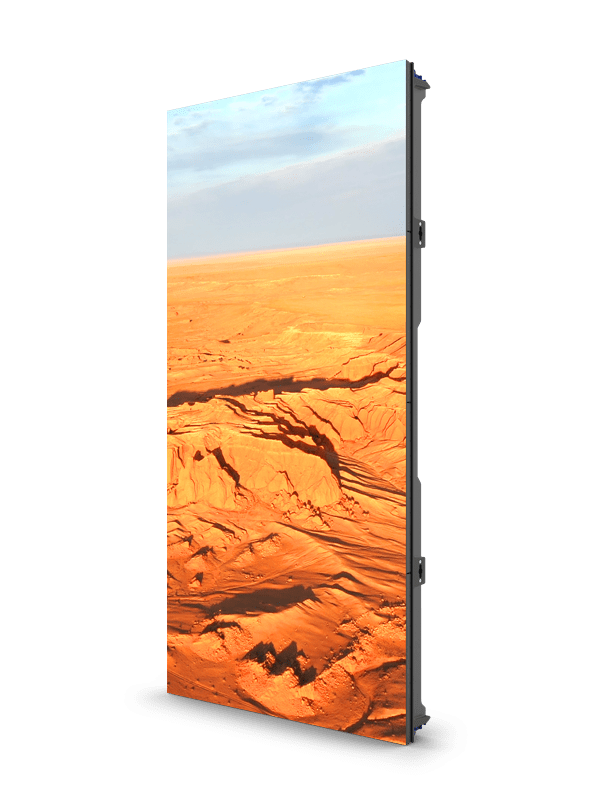

CHAUVET PROFESSIONAL REM1 - SMD LED Video Panel (4-Pack)

AT A GLANCE
1.9 mm pitch, ultra-high resolution, modular, indoor video panel

Map and scale your wall with the Novastar MX40 Pro sender

Universal, magnetic LED modules for easy replacement and servicing

Magnetic-assisted hanging integrated into frames makes building a screen fast and easy with minimal labor/effort required

REM1 offered in two physical sizes: 1 m x 0.5 m, 0.5 x 0.5 m (special order)

Integrated curving capabilities for concave and convex configurations

Spring-loaded corner protection for safe transportation and handling

Operating in the DCI-P3 color space and driven via the premium A10s Pro receiver card from Novastar, black body LEDs accurately reproduce video at 22-bit+ grayscale and a wide color gamut

High performance LED drivers deliver 7,680 Hz refresh rate for camera-friendly operation in high-demand applications

Low latency and HDR10 supported for VR/XR studio, live applications

Design allows for overhead hanging, ground stacking, and wall mounting, maximized for multiple applications

Specialized anti-reflective coating applied to the front of LED modules ensures optimal viewing comfort

Ground support/stacking system available in scalable road case-GROUNDSUPPORT2KIT

SPECIFICATIONS
OPTICAL
Light Source: 131,072 LEDs (tri-color RGB) SMD 1212, 100,000 hours life expectancyLED Color Wavelength: red (620 to 625 nm), green (510 to 535 nm), blue (485 to 475 nm)Color Space: DCI-P3Viewing Angle (H/V): 140°/140°Calibrated Illuminance: 800 NITS (calibrated)Maximum Illuminance: >1,000 NITS (calibration disabled)Contrast Ratio:Grayscale: 22-bit+Receiver Card : A10s ProDrive Type : 1/21Pixels: 256 x 512Pixel Pitch: 1.9 mmMinimum Viewing Distance: 7.5 ft (2.3 m)Pixel Density: 262,144/m2Display Refresh Rate: 7,680 Hz (S-PWM)
CONSTRUCTION / PHYSICAL
Dimensions: 19.69 x x.xx x 39.37 in (500 x x.xx x 1000 mm)Weight: 31.2 lb (14.15 kg)Threaded Bolt: M10, 1.5Exterior Color: BlackHousing Material: Aluminum ADC12LED Module Material: Glass filled PolycarbonateMaximum vertical hang: 11 panels
CONNECTIONS
Power Connection: Edison (local) plug to Seetronic® powerKON®Power Input: Seetronic® powerKON®Power Output: Seetronic® powerKON®Data Connectors: Seetronic® etherKON®Cable Length (signal extension): 4 ft (1.2 m)Cable Length (power): 4.6 ft (1.4 m)Cable Length (power extension): 6 ft (1.8 m)
CONTROL
Control Protocol: Novastar VMP platformRecommended Processor/Driver: Novastar MX40 ProPanel Resolution (L x H): 256 x 512Maximum Panels/Novastar MX40 Pro (20 ports):HDR off, 24 Hz8-bit video source: 12/port, up to 240/Processor/Sender10-bit video source: 9/port, up to 180/Processor/Sender12-bit video source: 6/port, up to 120/Processor/SenderHDR off, 30 Hz8-bit video source: 7/port, up to 140/Processor/Sender10-bit video source: 7/port, up to 140/Processor/Sender12-bit video source: 5/port, up to 100/Processor/SenderHDR off, 60 Hz8-bit video source: 5/port, up to 100/Processor/Sender10-bit video source: 3/port, up to 60/Processor/Sender12-bit video source: 2/port, up to 40/Processor/SenderHDR off, 120 Hz8-bit video source: 2/port, up to 40/Processor/Sender10-bit video source: 1/port, up to 20/Processor/Sender12-bit video source: 1/port, up to 20/Processor/SenderHDR off, 144 Hz8-bit video source: 2/port, up to 40/Processor/Sender10-bit video source: 1/port, up to 20/Processor/Sender12-bit video source: 1/port, up to 20/Processor/Sender
ELECTRICAL
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)Power Linking: 7 units @ 120 V; 12 units @ 208 V; 14 units @ 230 VPower and Current: 240 W, 2.0 A @ 120 V, 60 HzPower and Current: 240 W, 1.15 A @ 208 V, 60 HzPower and Current: 240 W, 1.04 A @ 230 V, 50 Hz
CERTIFICATIONS / QUALIFICATIONS
CE, MET, FCCMET Listing Number: E113093-1110, E113093-1125US Safety: UL 60950-1Canadian Safety: CSA C22.2 No. 60950-1IP Rating: IP30, dry locationThermal Dissipation @ 120V: 819 BTU per hourThermal Dissipation @ 208V: 819 BTU per hourThermal Dissipation @ 230V: 819 BTU per hourOperating Temperature: -4 °F to 122 °F (-20 °C to 50 °C)
WHAT'S INCLUDED
4 REM11 Seetronic® powerKON® power cord4 Seetronic® powerKON® power linking cords4 Seetronic® etherKON® signal linking cords5 pcs spare LED masksUser Manual
REQUIRED ACCESSORIES
Required Software: Nova VMPController (required): Novastar MX40 ProCompatible Mounting Options: REM Rig Bar (0.5 m, 1 m lengths offered), M10 bolt/clamp (rear or surface mounting), GROUNDSUPPORT2KIT (floor mounting)
OPTIONAL ACCESSORIES
ClampsNeutrik powerKON cablesNeutrik etherCON cablesREM-RB100CMIPREM-RB50CMIPGROUNDSUPPORT2KITMT07 Universal Module Removal Tool
