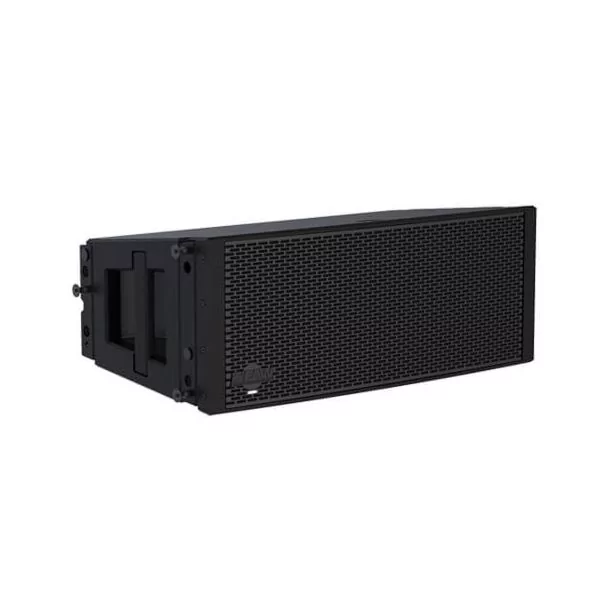

EAW RSX208L - 1500W 3-Way Powered Linarry Module

Account manager

Have a Question? Ask an Account Manager

Designed to streamline setup and deliver maximum results in minimum time, RADIUS couples unique and intelligent features with EAW’s signature acoustical design to deliver solutions for rental firms and system integrators. The RADIUS articulated array features OptiLogic, providing automatic array self-detection and instant optimization including air loss compensation and more. EAWmosaic™ app provides total system optimization from anywhere in the venue, plus intuitive room design and prediction in a single, comprehensive application. With the proven sonic performance of EAW’s acoustic design and DSP mastery plus full Dante integration across the line, RADIUS delivers an intelligent and flexible system to fit any budget.

Specifications

Frequency Response
70 Hz -18 kHz
Max SPL
131 dB
Operating Mode

Amplifier Channels: Tri-amp LF,LF/MF, HF
External Signal Processing: DSP w/EAW Focusing™ and DynO™

Subsystem

LF – 1 x 8 in cone, 2 in voice coil
LF/MF – 1 x 8 in cone, 2 in voice coil
HF – 2 x 1 in exit, 1.4 in voice coil compression drivers

Nominal Beamwidth
Horizontal 120°
Vertical 12°
Power Handling

3x 500W

Connections

Powercon AC Mains/Loop
2x Neutrik® etherCON™
RJ-45
XLR Input/Loop

Dimensions

Height: 9.80 in (248.9 mm)
Width: 25.20 in (640.0 mm)
Depth: 13.10 in (332.7 mm)

Weight

40.5 lb (18.4 kg)

More Information
ConditionNew
MPN (manufacturer part number)RSX208L BLACK
