Mackie 802VLZ4 - 8-Channel Analog Mixer

Special Price $199.00 Regular Price $259.99




SKU
MACKIE-802VLZ4


-8-ch Analog Mixer with 3 Onyx Mic Preamps -3 x Stereo Channels -1 x Aux Sends Per Channel

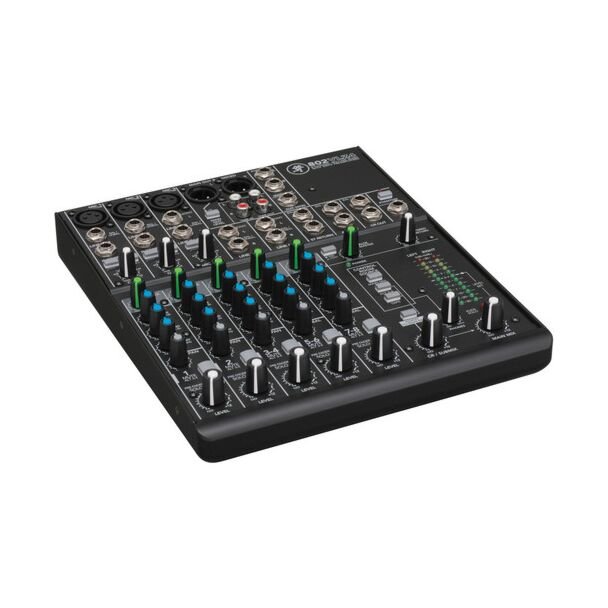

Mackie 802VLZ4 - 8-Channel Analog Mixer

The 8-channel 802VLZ4 features the proven performance of Mackie's Onyx mic preamps in a desk-friendly, ultra-compact design perfect for professional applications with a lower input need. From every input to every output, the Mackie 802VLZ4 is designed to provide the highest headroom and lowest noise possible for maximum signal integrity. Plus, it is truly "Built-Like-A-Tank" with a ridiculously rugged solid steel chassis plus high-contrast controls for ultimate tactile control. And with features like instrument level inputs, phantom power and level metering, the 802VLZ4 offers a true step up in performance and durability that's ideal for your professional application.

More Information
SKU MACKIE-802VLZ4
Freeshipping Free Shipping
UPC (Universal Product Code) 00663961039832
MPN (manufacturer part number) 802-VLZ4
Discount N/A
Condition New
Features

• 8-channel mixer featuring Mackie signature high-headroom/low-noise design • 3 boutique-quality Onyx mic preamps - Ultra-wide 60dB gain range - 128.5 dB dynamic range - +22 dBu line input handling - Extended frequency response - Distortion under 0.0007% (20Hz – 50kHz) • Improved RF rejection perfect for broadcast applications • Phantom power for condenser mics • 8 high-headroom line inputs • Selectable instrument inputs on first two channels – no DI box needed • 3-band EQ (80Hz, 2.5kHz, 12kHz) • 18 dB/oct 100Hz low-cut filter on mic input channels • Aux send, level, pan and PFL solo on each channel • Stereo return for connecting FX processor or other stereo source • ALT 3/4 stereo bus for added routing flexibility • Control room / phones source matrix • High-resolution 12-segment stereo meters • Sealed rotary controls resist dust and grime • “Built-Like-A-Tank” rugged steel chassis with powder-coat finish • High-visibility, high-contrast controls deliver convenient “at-a-glance” visual feedback • Universal power supply for worldwide use

Specs
Specification Detail
Type Analog
Channels 8
Inputs - Mic Preamps 3 x XLR
Inputs - Line 2 x 1/4" (CH 1-2), 6 x 1/4" (CH 3-8 Stereo), 2 x RCA (Tape)
Inputs - Other 2 x RCA (tape)
Outputs - Main 2 x XLR, 2 x 1/4"
Outputs - Direct No Direct Outputs
Outputs - Other 2 x RCA (Tape), 2 x 1/4" (Alt), 2 x 1/4" (CR)
Headphones 1 x 1/4"
Send/Return I/O 1 x 1/4" (Send), 2 x 1/4" (Return)
Phantom Power 3 (CH 1-3)
EQ Bands 3-band
Aux Sends 1, Pre
Busses/Groups Alt 3-4
Faders No Faders
Channel Inserts Yes (CH 1-2)
Effects No effects
Talkback No talkback
Computer Connectivity No computer connectivity
Rackmountable No
Manufacturer Part Number 2040767-00
Producut Video No
