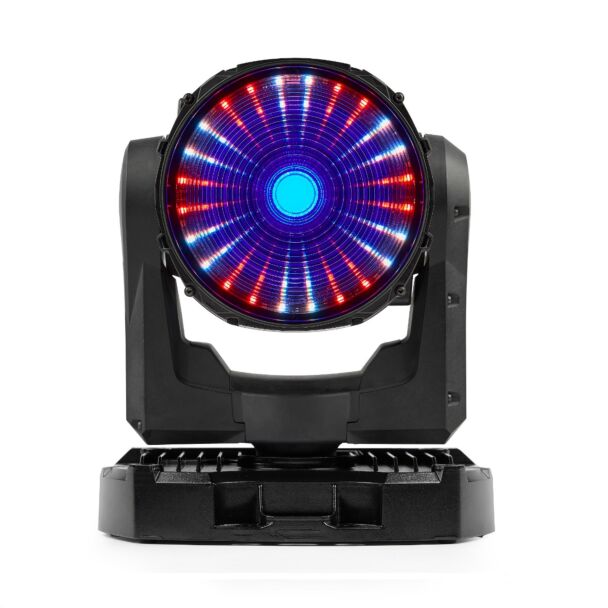

Width (across yoke): 226 mm (8.90 in.)
Width (base): 254 mm (10.00 in.)
Height (head straight up): 336 mm (13.23 in.)
Height (maximum): 349 mm (13.74 in.)
Depth (head): 220 mm (8.66 in.)
Depth (base): 177 mm (6.97 in.)
Minimum center-to-center distance in side-by-side installation: 300 mm (11.81 in.)
Weight: 4.40 kg (9.70 lbs.)
Beam Dimmer/Shutter: 0 - 100% continuous dimming, regular and random strobe, instant open and blackout
Beam Dimming options: Choice of four dimming curves
Beam Color Mixing: RGB, independently variable 0 - 100%
Beam Color Temperature Control: Variable 1,000 – 12,850 K
Beam Tint Control: Variable green-magenta shift Δuv -0.05 – +0.05
Beam Virtual Color wheel: 48 color presets, continuous rotation & random color
Zoom: Motorized with 1:5 zoom ratio, including zoom pulse effect
Pan: Motorized 540°
Tilt: Motorized 240°
Beam P3 Mix: Videomapping of fixture with variable crossfade between DMX control and video control
Backlight Dimmer/Shutter: 0 – 100% continuous dimming, regular and random strobe, instant open and blackout
Backlight Dimming options: Choice of four dimming curves
Backlight Color Mixing: RGB, independently variable 0 - 100%
Backlight Color Temperature Control: Variable 1,000 – 12,850 K
Backlight Tint Control: Variable green-magenta shift Δuv -0.05 – +0.05
Backlight Virtual Color wheel: 48 color presets, continuous rotation & random color
Backlight PixelMapping: Individual RGB control of each of the 24 Backlight pixels
Backlight P3 Mix: Videomapping of fixture with variable crossfade between DMX control and video control
Pre-programmed effects: Two ranges of FX on Beam, Backlight or Combination; independent or synchronized/combined
LED Frequency control: Variable LED PWM control
Control Protocols: DMX, RDM, Art-Net, RDM over Art-Net, sACN and P3
Protocol Detection: Automatic
DMX Modes: Compact, Basic, Ludicrous & Compact Direct
DMX Channels: 20, 36, 108 & 20
16-bit Controllable Parameters: Beam &Â Backlight Dimming, Beam Color Mixing, Zoom, Pan and Tilt
Setting and Addressing: Display Menu, RDM, RDM over Art-Net or P3
Local User Interface: Backlit LCD Display with battery-powered operation
Fixture identification: User-settable ID number
DMX Compliance: USITT DMX512-A
RDM Compliance: ANSI/ESTA E1.20
Art-Net Compliance: Art-Net 1, 2, 3 and 4; including RDM over Art-Net
sACN Compliance: ANSI E1.31 - 2016
Martin P3 Compliance: P3 System Controller Software 5.1.0 or newer
DMX/RDM Transceiver: Galvanic-isolated RS-485
Ethernet Transceiver: 10/100Mbit (with fail-safe bypass)
Firmware Update: via DMX using Martin Companion or via Ethernet using Martin Companion / P3 System Controller
Front Lens Diameter: 150 mm (5.91 in.)
Zoom Range: 1:5
Full Zoom Range at Half Peak (Beam Angle): 4.0° - 21.0°
Full Zoom Range at Tenth Peak (Field Angle): 6.0° - 27.0°
Beam Light Source: 1 x 120 W RGBL LED
Backlight Light Source: 24 x 0.25 W RGB LED
Max. Total Beam LED Engine Power: 120 W
Max. Total Backlight LED Engine Power: 6 W
Minimum LED lifetime: > 50.000 hours (to > 70% luminous output)*
*Figure obtained under manufacturer's test conditions
Light Engine Luminous Output: 5,680 lumens
Fixture Luminous Output Wide: 2,400 lumens
Fixture Luminous Output Narrow: 1,800 lumens
Peak Luminous Intensity Narrow: 300,000 cd
CCT: Variable 1,000 K – 12,850 K (+/- 200 K)
CRI (Color Rendering Index) high output mode: ≥ 77
CRI (Color Rendering Index) high quality mode: ≥ 83
CQS (Color Quality Scale) high output mode: ≥ 87
CQS (Color Quality Scale) high quality mode: ≥ 90
TM-30 Rf (IES TM-30-15 Fidelity Index) high output mode: ≥ 81
TM-30 Rf (IES TM-30-15 Fidelity Index) high quality mode: ≥ 84
TM-30 Rg (IES TM-30-15 Gamut Index) high output mode: ≥ 114
TM-30 Rg (IES TM-30-15 Gamut Index) high quality mode: ≥ 110
TLCI (Television Lighting Consistency Index) high output mode: ≥ 70
TLCI (Television Lighting Consistency Index) high quality mode: ≥ 84
Beam LED Refresh Rate: 2,400 Hz with adjustment (+/- 2%) via DMX
Backlight LED Refresh Rate: 1,200 Hz
Binning: Tight color and flux binning
Calibration: Full Gamut Color Calibration of Beam and Backlight
Color Modes: Extended Color Mode and Calibrated Color Mode
* All Photometric Data measured in steady state (30 minutes warm-up time) at 25°C ambient
Housing: High-impact flame-retardant thermoplasticColor: BlackProtection rating: IP20
Mounting options:Â clamps on fixture, omega on fixture, fourbar or grid mount ring
Mounting points on Fixture:Â 1 pair of 1/4-turn points for 106 mm (4.17 in.) center-to-center omega bracket and two M12 threaded holes
Mounting points on Fourbar: 1 fixed and 2 repositionable M12 threaded holes
Mounting points on Grid Mount Ring:Â 6 receivers for VDO Couplers (compatible with VDO Atomic Bold/Dot)
Mounting points on VDO Coupler Header:Â 2 repositionable M12 threaded holes and 4 receivers for VDO Couplers (compatible with Grid Mount Ring and VDO Atomic Bold/Dot)
Maximum vertical column height in Grid Mount Rings:Â 6 fixtures
Location:Â Indoor or outdoor protected from elements
Orientation:Â Any
Minimum distance to combustible materials: 0.20 m (7.87 in.)
Minimum distance to illuminated surfaces:Â 1.75 m (68.90 in.)
AC mains power in/thru: Neutrik powerCON TRUE1 TOPDMX and RDM data in/thru: Neutrik 5-pin locking XLREthernet (Art-Net, sACN and P3) in/thru, including fail-safe bypass: Neutrik etherCON
AC power: 100-240 V AC nominal, 50/60 Hz
Power supply unit: Auto-ranging electronic switch mode
Typical half-cycle RMS inrush current at 230 V, 50 Hz: 3.5 A
Typical earth-leakage current: 0.05 mA
Power Factor: 0.99 @ 100V , 0.98 @ 120V , 0.94 @ 208V , 0.92 @ 230V , 0.88 @ 240V
Max current draw: 2.0 A @ 100V / 120V, 0.9 A @ 208V / 230V / 240V
Typical current draw: 1.6 A @ 100 V , 1.4 A @ 120 V , 0.9 A @ 208 V , 0.8 A @ 230 V , 0.8 A @ 240 VÂ *
Power Consumption
Maximum: 180 W
Typical: 160 W *
Idle: 24 W *
Hibernation: 9 W *
* Measurements made at nominal voltage. Allow for a deviation of +/- 10%.
Typical: full output white, no effects moving, regulated fan speed.
Idle: no output, no effects moving, regulated fan speed.
Hibernation: no output, motors de-energized, fans stopped, wake-up procedure to re-use fixture.
Cooling: Forced air (temperature regulated, low noise, user-definable levels)Total heat dissipation (calculated, +/- 10%): 546 BTU/hr.Maximum surface temperature, steady state, at 40° C ambient: 55° C (131° F)Maximum ambient temperature (Ta max.): 40° C (104° F)Minimum ambient temperature (Ta min.): 5° C (41° F)
Sound Pressure Level (LpA) @ 1 m (default regulated fan mode, full output): 26.3 dB(A)Sound Pressure Level (LpA) @ 1 m (constant fan mode ultra low): 23.0 dB(A)
RoHS: CompliantREACH: CompliantWEEE: CompliantProposition 65: CompliantFSC: Certified cardboard inner and outer packagingEfficacy (max output): 15 lm/WLWR*: 545 lm/kg (247 lm/lbs.)
LWR = Lumen-to-Weight Ratio
Global CB Certification/IECEE: IEC 60598-2-17 (IEC 60598-1)EU safety: EN 60598-2-17 (EN 60598-1), EN 62471, EN 62493EU EMC: EN 55015; EN 55032; EN 55035; EN 61547; EN 61000-3-3US safety: UL 1573US EMC: FCC Part 15 Class BCanadian safety: CSA C22.2 No. 166Canadian EMC: ICES-003 Class B, ICES-005 Class BAustralia/NZ: RCMUnited Kingdom: UKCA
Single omega bracket with 1/4 turn fasteners for rigging clamp attachment
SoftLens
Multi-Language Safety and Installation Manual
VDO Atomic Bold in cardboard: P/N MAR-90357703
VDO Atomic Dot CLD in cardboard: P/N 90357701
VDO Atomic Dot WRM in cardboard: P/N 90357702
Martin Companion Cable (for firmware update over DMX): P/N 91616091
Martin Companion Software (for firmware update over DMX/Ethernet): Free download from www.martin.com
Transport and Storage
Flightcase for 8 x MAC One: P/N MAR-91515058
Additional dual SiP Foam Flightcase Insert for MAC One: P/N MAR-91611862HU
Consumables
CR123A 3-volt lithium battery: P/N 05801011
Spare Parts
Additional MAC One SoftLens: P/N 5137039-00
Power Input Cables
Power Input Cable, H07RN-F, 2.5 mm2, bare ends to TRUE1 NAC3FX-W TOP (female), 1.5 m (4.9 ft.) P/N 91611797
Power Input Cable, SJOOW, 12 AWG, bare ends to TRUE1 NAC3FX-W TOP (female), 1.5 m (4.9 ft.) P/N 91610173
Power Linking Cables
Power relay cable, H07RN-F, 2.5 mm2, TRUE1 to TRUE1, 2.5 m (8.2 ft.): P/N 91611796
Power relay cable, SJOOW, 12 AWG, TRUE1 to TRUE1, 2.5 m (8.2 ft.): P/N 91610172
Power Connectors
Cable Connector, Neutrik powerCON TRUE1 TOP Female: P/N 91611789HU
Cable Connector, Neutrik PowerCON TRUE1 TOP Male: P/N 91611788HU
PDE Adapter Cables (for use in matrix with VDO Atomic Bold/Dot)
BreakIn Cable Power-DMX-Ethernet to PDE: P/N MAR-91700000
BreakOut Cable PDE to Power-DMX-Ethernet: P/N MAR-91700001
Installation Hardware
MAC One Fourbar: P/N MAR-91616127HU
MAC One VDO Grid Mount Ring: P/N MAR-91616128HU
Set of 10 VDO Couplers: P/N MAR-91616129HU
Dual VDOÂ Header: P/N MAR-91616130HU
VDO Atomic Half Coupler: P/N 91610004
VDO Atomic Interlock Adapter: P/N 91610006
G-clamp (suspension with fixture hanging vertically downwards only): P/N 91602003
Quick Trigger Clamp (suspension with fixture hanging vertically downwards only): P/N 91602007
Half-coupler Clamp: P/N 91602005
Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, black: P/N 91604006
Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, silver: P/N 91604007
