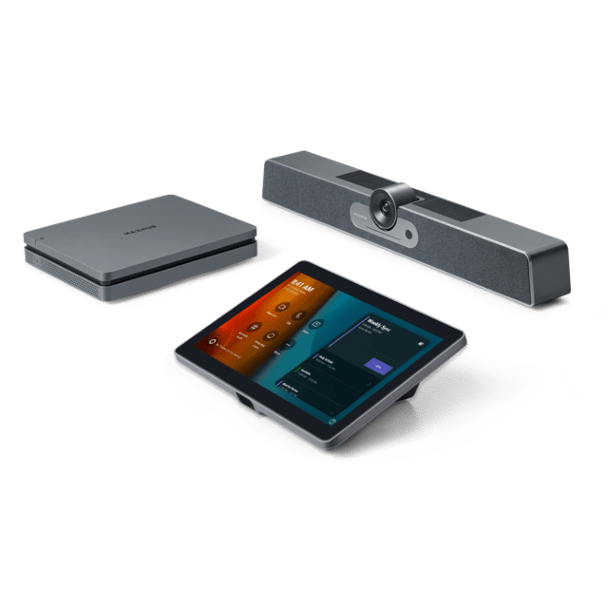

MaxHub XT10-VB KIT - MTR Kit w/ Compute, Touch Console & UC S07

Introducing the MaxHub XT10-VB KIT, an all-in-one collaboration solution designed to streamline meetings, presentations, and teamwork in modern workplaces. Combining a high-definition interactive display with advanced collaboration tools, the XT10-VB KIT provides a versatile and intuitive platform for communication, collaboration, and productivity.

Crystal-Clear Visuals:
Featuring a vibrant 10-point touch-enabled display with stunning 4K Ultra HD resolution, the XT10-VB KIT delivers crystal-clear visuals that captivate audiences and bring content to life with unparalleled clarity and detail. Whether showcasing presentations, videos, or interactive applications, every image is rendered with breathtaking precision and realism, ensuring maximum impact and engagement.

Intuitive Collaboration Tools:
With its intuitive touch interface and built-in collaboration tools, including digital pens, shapes, and text annotations, the XT10-VB KIT enables seamless interaction and collaboration among users. Whether brainstorming ideas, annotating documents, or conducting presentations, users can express their ideas and convey information with clarity and impact.

Versatile Connectivity:
Equipped with a comprehensive array of connectivity options, including HDMI, DisplayPort, USB, and wireless screen mirroring capabilities, the XT10-VB KIT seamlessly integrates with a wide range of devices and platforms. Whether connecting laptops, tablets, smartphones, or digital cameras, users can easily share and collaborate on content from any source, enhancing productivity and efficiency.

Effortless Installation and Management:
Designed for hassle-free installation and management, the XT10-VB KIT features a sleek and lightweight design that can be easily mounted on walls, stands, or mobile carts. With its intuitive user interface and remote management capabilities, administrators can effortlessly configure settings, update software, and monitor usage, ensuring smooth operation and maximum uptime.

Enhanced Collaboration:
With built-in collaboration tools, including video conferencing capabilities and compatibility with popular collaboration software, the XT10-VB KIT facilitates seamless communication and collaboration among users, regardless of their location. Break down barriers, foster teamwork, and drive innovation with the MaxHub XT10-VB KIT.

In conclusion, the MaxHub XT10-VB KIT is more than just an interactive display—it's a powerful platform for communication, collaboration, and productivity in today's digital workplace. With its stunning visuals, intuitive interface, and versatile features, the XT10-VB KIT empowers users to connect, communicate, and collaborate with confidence and ease. Experience the future of collaboration with the MaxHub XT10-VB KIT.

Technical Specifications
Open
Mini-PC XC13T
Product Specification
Type
Mini-PC
CPU
12th Gen Intel i3
Memory
8GB DDR4 3200MHz SO-DIMM x 2
Storage
128GB SATA SSD (M.2-2280 SATA3 up to 6Gb/s)
Graphics
Intel® UHD Graphics for 12th Gen Intel® Processors
Network
1000Mbps RJ45
Operating System
Windows 11 IoT Enterprise SAC
Application
Microsoft Teams Room
I/O Port
USB-A 3.0
4
LAN
1
USB-C (for Teams Rooms Console)
1
HDMI Out
1
Audio Out
1
AC Power
1
Kensington Lock Slot
1
Power
Power Supply Mode
AC POWER
Power Requirements
100-240V AC 50/60Hz
Max Power
90W
Accessories (included in the Package)
Wall Bracket
×1
PC Bracket
×1
Cable Cover
×1
HDMI Cable (1.8m/5.9ft)
×1
Power Cord (1.8m/5.9ft)
×1
Quick Start Guide
×1
Physical Specification
Product Dimension
230 × 185 × 41.5 mm / 9.06 x 7.28 x 1.63 inch
Product Weight
1.36 kg / 3 lbs
Touch Control Panel TCP20T
Display
Size
10.1 inch
Resolution
1920 (H) x 1200 (V)
Frequency Refresh Rate
60Hz
Back Light Unit
ELED
Brightness with Glass
Min.250cd/m², Typ.300cd/m²
Life Time
≥ 20000 Hours
Touch System
Type
Capacitive touch
Surface Treatment
Anti-fingerprint, Anti-glare
I/O Port
HDMI In (Content Sharing)
1
USB-A 2.0 (Table Audio Devices)
1
USB-C 3.1 (for Connection to XC13T Mini PC)
1
Audio Out (Headphone, w/o mic)
1
Sensor
Motion Sensor
PIR sensor for auto wake-up
Accessories (included in the Package)
USB Type-C Cable (Type C-C) 5m / 16.4ft
×1
HDMI Cable 1.8m / 5.9ft
×1
Quick Start Guide
×1
Physical Specification
Product Dimension
245 × 164.3 × 77.4 mm / 9.65 x 6.47 x 3.05 inch
Product Weight
0.88 kg / 1.94 lbs
VideoBar UC S07
Camera
Pixel
12M
Sensor
1/2.3-inch 12MP Sony sensor
ZOOM
5x Digital Zoom
Output Format
MJPG; YUY2; H.264
Field of View
120° (D)
Adjustable Angle
± 15° (V)
Focus Mode
Fixed-Focus
Focus Distance
1m
Special Features
Auto Framing: automatic adjustment FOV to fit all participants
Speaker Tracking: voice triggered people tracking
10 Zooming Pre-sets for instant setting up
Power
Power Requirements
12V
Overall Power(Max.)
10W
PoE Power
Yes (IEEE 802.3af or 802.3at)
Audio
Speaker
Sound Chanel
1.1
Output Power
8W + 3W
Maximum Sound Pressure
80dBSPL@1m
Signal-to-Noise Ratio
>75dB
Frequency Range
150Hz ~ 18kHz
Microphone
Microphone Quantity
6
Voice Pickup Range
8m
Microphone Frequency Range
100Hz ~ 7.5kHz
Special Features
Noise Reduction
Echo Cancellation
Anti-Reverberation
Built-in AGC Algorithm
Input/Output Port
USB 3.0 Type-C
Connect USB host, upgrade system, etc.
Audio Out
Used for external audio equipment
DC 2.0
Used for 12V power input power supply
RJ45
No IP Support, only provides PoE power
Compatibility
Support major VC software including ZOOM, Microsoft® Teams, Google Meet, Google Hangouts, Cisco WebEx®, RingCentral, etc.
System Requirements
Supports Windows XP/7/8.1/10/11, Android 8.1 or higher, and MAC OS 10.12 or higher
Mount
Wall-mounted
TV mount kit (Optional)
Warranty
3-year hot swap
Accessories one year
What's in the Box
included
1 x USB C-A Cable (1.8m / 5.9 ft), 1 x Remote Control
1 x Power Adapter, 1 x Wall-mounted Components, 1 x Camera Privacy Cover
