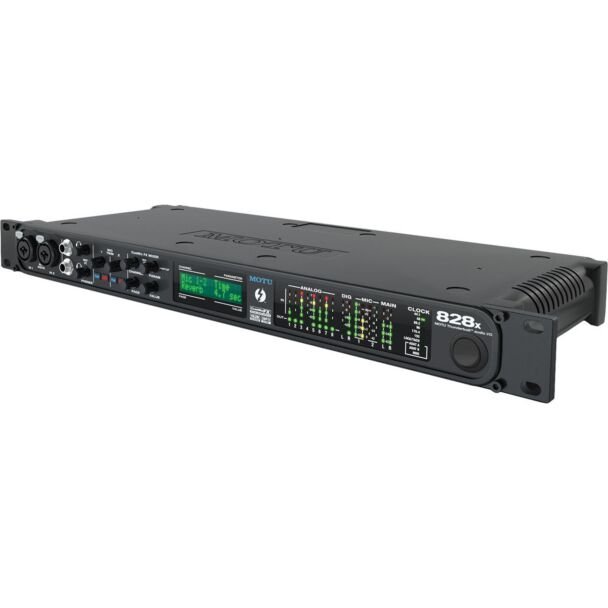

MOTU 828x - 28x30 Thunderbolt Audio Interface

Special Price $849.00 Regular Price $999.00


-24-bit 192 kHz Resolution -Two Microphone Preamps with +48V -Onboard Digital Mixer With Effects -Standalone Analog Mixer Operation -Built-In Instrument Tuner

MOTU 828x - 28x30 Thunderbolt Audio Interface
Experience superior connectivity and excellent performance with the MOTU-828X audio interface, which allows you to connect up to 6 devices including the 828x to your personal computer. Integrating Thunderbolt technology, this audio interface offers high-quality connectivity combined with wide bandwidth, allowing you to connect displays, hard drives, and other peripherals to your personal computer without any glitches in performance. With Hi-Speed USB 2.0 compatibility, connecting Mac or Windows-based laptops and desktops is possible. Stellar audio recording quality is on offer from the MOTU-828X as it uses cutting-edge technology to record at 192 kHz. With studio-grade mic channels and a unique, proprietary V-Limit™ hardware limiter, the 828x eliminates distortion and harsh artifacts, to ensure high-quality recording. What’s more, an on-board CueMix FX digital mixer allows you to apply DSP-driven compression, EQ and reverb, without straining your processor or without introducing latency. Packed in a durable metal chassis, the MOTU-828X is rugged piece of solid engineering.

More Information
Freeshipping Free Shipping
UPC (Universal Product Code) 00839128005846
MPN (manufacturer part number) 4370
Condition New
Features Hi-speed USB 2.0 Mac, PC, and USB 3.0 compatible As Thunderbolt becomes more widely adopted, Hi-speed USB 2.0 provides across-the-board compatibility with virtually all laptops and desktops on both Mac and Windows. Since USB 2.0 devices are compatible with USB 3.0-equipped hosts, your 828x interface is a future-proof investment in your studio. 28 inputs and 30 outputs How can one audio interface offer this much I/O? We pack it in, like no one else can: two combo-style mic/guitar inputs with preamps, 8 balanced analog in/out, XLR main outs, 16 channels of ADAT optical (8 channels at 96 kHz), plus S/PDIF, word clock and MIDI. Connect all of your studio gear, including microphones, guitars, synths, keyboards, drum machines and even effects processors. Recording up to 192 kHz Audio quality without compromise Now in its fifth generation, the 828 has become a benchmark for the industry, setting the bar by which others are judged. How has this level of respect been earned? Through consistent design integrity and intelligent use of current-generation parts and design technologies. Studio-grade mic channels Enjoy extras like sends and optional hardware limiting Do you work with outboard EQs and compressors? Each 828x mic input offers a pre-converter send for mono or stereo mic channel outboard processing. The 828x's unique V-Limit™ hardware limiter employs a proprietary design to offer an additional 12 dB of headroom over digital zero with no digital clipping or harsh artifacts, for that added protection in dynamic recording situations. The 828x's preamps are clean and neutral, allowing you to use your favorite plug-ins and host software to color the sound just the way you want for each recording application. On-board digital mixer with effects Mixing and effects for monitoring and live mixing Record, monitor, route and process all live inputs using the professional on-board CueMix FX digital mixer – with no latency and no processor strain on your computer. Apply DSP-driven compression, EQ and reverb to every input and output, independent of your host computer.

Technicial Specifications

Converters 24-bit
Sample rates 44.1, 48, 88.2, 96, 176.4, 192 kHz
Analog inputs 2 x XLR/TRS combo-style mic/guitar inputs
8 x 1/4" TRS line inputs (balanced/unbalanced)
Analog outputs 2 x XLR balanced main out
8 x 1/4" balanced TRS line out
2 x 1/4" TRS stereo headphone
Digital I/O 16 channels of ADAT optical at 1x sample rates
8 channels of SMUX optical at 2x sample rates
2-channel TOSlink (optical S/PDIF) up to 96 kHz
2-channel RCA S/PDIF up to 96 kHz
Total I/O 28 inputs and 30 outputs at 1x sample rates
20 inputs and 22 outputs at 2x sample rates
10 inputs and 10 outputs at 4x sample rates
Computer I/O 1 x Thunderbolt (compatible with 1 and 2)
1 x USB 2.0 (compatible with 3.0)
Sync I/O 1 x SMPTE time code in (LTC)
1 x SMPTE time code out (LTC)
1 x word clock in
1 x word clock out
Headphone output 1 x 1/4" TRS stereo phone (assignable)
1 x 1/4" TRS stereo phone (mirrors main outs)
Phantom power 2 x individual +48V
Front panel 2 x XLR/TRS combo mic/guitar in
2 x 1/4" TRS phone
2 x digital rotary encoders • phone/main volume
2 x digital rotary encoders • mic trim
4 x switches • Pad and 48V Phantom
4 x digital rotary encoders for LCD control
2 x 16 character LCD
8 x 4-segment ladder LEDs • 1/4-inch analog in
8 x activity LED • 1/4-inch analog out
2 x 4-segment ladder LEDs • RCA S/PDIF in
2 x activity LED • RCA S/PDIF out
2 x 10-segment LEDs • mic in with V-Limit
2 x 5-segment ladder LEDs • main outs
6 x LED • sample rate indicator
1 x LED • LOCK/TACH indicator
2 x activity LEDs • optical bank A/B
1 x activity LED • MIDI in/out
1 x AC power switch
Power International 100-240V autoswitching supply
50-60 Hz • 20 Watts
Mac System Requirements

A Mac with an Intel processor
1 GB RAM; 2 GB or more recommended
Mac OS X version 10.6 or later required
Available Thunderbolt or high-speed USB 2.0 (or 3.0) port
USB cable included; Thunderbolt cable purchased separately
A large hard drive (preferably at least 250 GB)
Windows System Requirements

1 GHz Pentium-based PC compatible or faster
1 GB RAM; 2 GB or more recommended
Windows 8, 7 or Vista, 32- or 64-bit; Vista SP 2 or later required
Available Thunderbolt or high-speed USB 2.0 (or 3.0) port
USB cable included; Thunderbolt cable purchased separately
A large hard drive (preferably at least 250 GB)
Included software

CueMix FX
AudioDesk (Mac only, optical CD drive required)
Operating Systems

Mac OS X version 10.6 or later
Windows 8, 7 or Vista (SP2 or later is required)
64-bit operation

Available for Mac OS X 10.6 or later
Available for 64-bit versions of Windows 8, 7 or Vista
Requires a 64-bit CPU

Producut Video No
