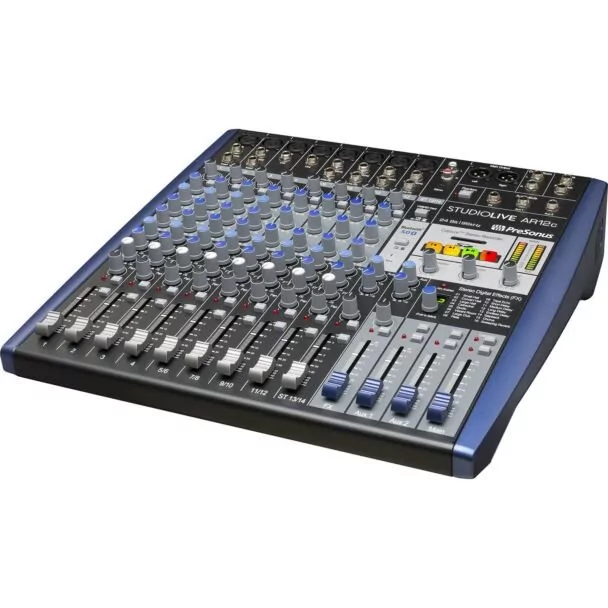

Presonus StudioLive AR12c

Special Price $599.95 Regular Price $699.95


discount



SKU
PRES-SLMAR12C

12-channel USB-C™ Compatible Audio Interface / Analog Mixer / Stereo SD Recorder

Audio recording made easy.

Don’t let the classic analog mixer design fool you—the StudioLive® AR12c was built to record. With a pristine analog front-end, eight high-gain XMAX mic preamps, and a 14x4 24-bit, 96 kHz, USB-C compatible USB 2.0 audio interface, its hybrid design makes it simple to record studio productions and mix live shows from a single, intuitive console. Add in a musical 3-band analog EQ, mic/line boost for low-level vintage synths and broadcast microphones, all-new digital effects with rich reverbs and lush delays, Bluetooth® connectivity, and a stereo SD recorder... and you have a mixing and recording powerhouse that fulfills the needs of both modern musicians and content creators.

A full-featured audio interface.

The StudioLive AR12c audio interface operates at up to 96 kHz for high-definition mixing and recording. Record each of the 12 inputs, plus the main mix for even more flexible recording options. Play back up to four streams for monitoring previously recorded tracks—plus a click. Eight lauded XMAX mic preamps provide all the gain you need to capture even the most subtle details without adding any extra noise. The analog mixer front-end makes connecting your gear to your computer intuitive, and creating monitor mixes is quick and easy. With a USB-C compatible connection, your StudioLive AR12c is ready to use as an audio interface for nearly any computer.

The channel that does it all… even Bluetooth connectivity!

The unique Super Channel can handle four stereo sources at once, making it easy to integrate consumer devices into your studio workflow. Connect a turntable to the RCA inputs, use the ⅛-inch stereo input to plug-in your smartphone, or forget the cable and connect it via Bluetooth wireless technology. You can also toggle between a stereo playback stream from your computer and playback from the onboard SD recorder, making rehearsal a snap.

A complete recording solution for studio and stage.

The StudioLive AR12c audio interface and analog mixer is tightly integrated with state-of-the-art recording software to help you realize your creative vision. Record multitrack live performances with one click thanks to PreSonus’ Capture™ live-recording software. Create complete studio productions with our award-winning Studio One® Artist DAW. With two professional recording applications included with your StudioLive AR12c, you’re ready to record right out of the box.

Stereo recording without a computer.

Imagine you’re rehearsing with your band and want to record your session to analyze later. Or perhaps you’re in the middle of a songwriting session and want to capture your ideas as quickly as they come to you. Either way, the StudioLive AR12c’s stereo SD recorder has you covered. Insert any SD/SDHC card and you’re ready to record your main mix to listen to later, so you’ll never forget a great song idea or an amazing guitar solo. Doing mobile interviews for your podcast? Leave the computer at home and record straight to SD.

Effects without latency.

Monitoring with reverb and delay helps to create better recordings. Any vocalist or guitarist will tell you that a little reverb makes them feel more comfortable while performing. The StudioLive AR12c mixer’s onboard effects processor lets you add high-quality reverb, delay, or chorus to any channel for a professional monitor mix. Like what you hear in your headphones? Record the Main Mix and capture the effects mix, too—with or without the dry channels—to blend with your multitrack recording. Experiment in post-production to your heart's content.

All the connections you need with a familiar look.

Packed with all the connections and controls needed to mix and record in the studio and on the stage, the StudioLive AR12c is the ultimate recording solution. The four mono channels and four stereo channels include a musical three-band EQ, plus one of PreSonus’ famed XMAX mic preamps. Two dedicated monitor mixes with balanced outputs provide your musicians the custom mix they need. The USB-C compatible connector ensures your StudioLive AR12c audio interface will be the center of your studio for years to come. And with high-resolution 96 kHz recording, a full complement of connections, and an instantly familiar workflow, the StudioLive AR12c is the perfect recording and mixing solution for the modern musician and content creator.

Features

Recording

  • 14x4 24-bit/96 kHz, USB 2.0 (over USB-C™ connection) audio recording interface
    • Record every channel plus the main mix
  • 2x2 SD recorder to capture the main mix
    • Supports SD™ and SDHD™ formats up to 32 GB

Mixing

  • 14-channel analog mixer
  • 8 balanced microphone inputs with XMAX mic preamps
  • 2 insert points
  • 2 instrument/line inputs
  • 12 balanced line level inputs:
    • 4 mono
    • 4 stereo pairs
  • Stereo Super Channel (Ch. 13/14) with Bluetooth 5.0 input, RCA inputs, 1/8-inch stereo input, and switchable SD/USB stereo playback
  • 4 mono and 4 stereo channels, each with level knob, pan, mute, PFL solo, highpass filter, and 3-band semi-parametric EQ
  • 2 monitor buses with dedicated channel sends, AFL solo, and balanced TRS output
  • L/R Control Room outputs with level control
  • Headphone output with level control

Signal Processing

  • Highpass filter on every channel
  • 3-band quasi-parametric EQ with sweepable mid-band on each mono channel
  • 3-band semi-parametric EQ on each stereo channel
  • Stereo effects processor with 16 presets, dedicated send and return, and bypass footswitch jack
  • Mic/line boost on stereo channels for low-level input sources and consumer devices

Included Software

  • Capture™ live multitrack recording software
  • Studio One ® Artist recording and production software (DAW)
  • Studio Magic plug-in suite

Power

  • Internal power supply
  • Standard IEC power connector

Physical

  • Sturdy metal construction
  • 60 mm faders
  • Optional rackmount kit

Computer system requirements:

Below are the minimum computer-system requirements for use with Capture™ and Studio One®.

Mac

  • macOS® 10.11 or higher (64-bit only)
  • Intel® Core™ 2 Duo processor (Intel Core i3 or faster recommended)

Windows

  • Windows® 7 x64 SP1 + platform update, Windows 8.1 x64, Windows 10 x64
  • Intel Core 2 Duo (Intel Core i3 or faster recommended)

Mac and Windows Systems

  • 4 GB RAM (8 GB or more recommended)
  • 30 GB hard-drive space (Studio One)
  • Internal or external 7200 RPM storage drive highly recommended
  • Monitor with 1366x768 resolution (high-dpi monitor recommended)

The minimum system requirements may differ for DAWs other than Studio One®. Please check the requirements for your DAW of choice with its manufacturer.

Note that the speed of your processor, amount of RAM and size and speed of your hard drive will greatly affect the overall performance of your recording system. Also, a more powerful system (faster processor with more RAM) will allow for lower latency (signal delay) than you might experience while monitoring audio signals.

As a commitment to constant improvement, PreSonus Audio Electronics, Inc., reserves the right to change any specification stated herein, at any time, without notification.

Technical Specifications

Microphone Preamp

Type XLR Female, Class A XMAX
Maximum Input level (unity gain) +9 dBu ±1.0 dB
Gain Control Range 43 dB (+12 to +55 dB)
Frequency Response to Analog Outputs 20 Hz to 20 kHz, +0.5/-1.5 dB
Frequency Response to USB (Direct) 20 Hz to 20 kHz, +0.5/- 1.5 dB
S/N Ratio to Outputs (+4 dBu) 94 dB
THD+N (min. gain, A-wtd) < 0.01%
Input Impedance 1 kΩ
EIN (+55 dB gain, 150Ω input, 20 Hz-22 kHz, A-wtd) Mono Channels: < 128 dBu
Common Mode Rejection Ratio (1 kHz, +55 dB gain) 65 dB
Phantom Power +48V, ±3V, Global

Instrument Inputs

Type ¼” TS Female, Unbalanced, Hi-Z
Maximum Input Level (min. gain, 1 kHz@0.5% THD+N) +9 dBu ±1.0 dB
Gain Control Range 43 dB, ±1 dB (+12 to +55 dB)
Frequency Response to Analog Outputs 20 Hz to 20 kHz, +0.5/-1.5 dB
Frequency Response to USB (Direct) 20 Hz to 20 kHz, +0.5/-1.5 dB
Dynamic Range (min. gain, A-wtd) > 105 dB
Dynamic Range (mid. Gain, unwtd) > 108 dB
THD+N (1 kHz, -1 dBFS, A-wtd) < 0.01%
THD+N (1 kHz, -1 dBFS, unwtd) < 0.01%
Input Impedance > 1 MΩ

Line Inputs

Type ¼” TRS Female, Balanced
Maximum Input Level (min. gain, 1 kHz@0.5% THD+N) +26 dBu ±1.0 dB
Gain Control Range

Mono Channels: 40 dB, ±1 dB (-5 to +35 dB)

Stereo Channels: 0 dB or +10 dB (+10 dB Boost)

Frequency Response to Analog Outputs 20 Hz to 20 kHz, +0.5/-1.5 dB
Frequency Response to USB (Direct) 20 Hz to 20 kHz, +0.5/-1.5 dB
S/N Ratio to Analog Outputs (+4 dBu) 85 dB
THD+N (1 kHz, -1 dBFS, A-wtd) < 0.01%
Input Impedance (Balanced) 10 kΩ

Main, Control Room, Monitor, and FX Outputs

Type (Main Outputs) XLR Male, Impedance Balanced
Type (Control Room, Monitor, FX Outputs) ¼” TRS Female, Balanced
Rated Output Level (Main Outputs) +24 dBu, ±1.0 dB
Rated Outputs Level (Control Room, Monitor, FX Outputs) +18 dBu
Frequency Response 20 Hz to 20 kHz, +0.5/-1.5 dB
Dynamic Range (A-wtd) > 108 dB
THD+N (Bandwidth 20 Hz - 20 kHz, -1 dBFS, unwtd) < 0.01%
Output Impedance 100 Ω

Headphone Output

Type ¼” TRS Female, Stereo, Unbalanced
Maximum Output Level 150 mW/channel @ 60 Ω
Frequency Response 20 Hz to 20 kHz, +0.5/-1.5 dB
Dynamic Range (A-wtd) > 103 dB
THD+N (Bandwidth 20 Hz - 20 kHz, -1 dBFS, unwtd) < 0.01%

System Crosstalk

Input to Output (Ref = +4dBu, 20 Hz to 20 kHz, unwtd) -90 dBu
Adjacent Channels (Ref = +4 dBu, 20 Hz to 20 kHz, unwtd) -85 dBu

Signal Level LED

Signal -30 dBFS (pre-EQ)
Clip -3.0 dB before clip (pre- or post-EQ)

Channel EQ

Low Cut 100 Hz, -18 dB/Octave
High Shelving ±15 dB @ 10 kHz
Mid Peaking (Mono Channels) ±15 dB @ 140 Hz to 3.5 kHz (variable)
Mid Peaking (Stereo Channels) ±15 dB @ 2.5 kHz
Mid-Band Q Boost: 1.0, Cut: 2.5
Low Shelving ±15 dB @ 100 Hz

Digital Audio

Host Interface USB 2.0
ADC Dynamic Range (Component) 114 dB
ADC Dynamic Range (Measured: A-wtd, 48 kHz) 105 dB
DAC Dynamic Range (Component) 114 dB
DAC Dynamic Range (Measured: A-wtd, 48 kHz) 105 dB
Signal-to-Noise (a-weighted) -96 dB
Bit Depth 24-bit
Internally Supported Sample Rates 44.1, 48, 88.2, 96 kHz
Jitter < 80 ps RMS (20 Hz – 20 kHz)
Jitter Attenuation > 60 dB (1 ns in => 1 ps out)

SD Recorder

Supported Media Format FAT16 formatted SD™ card, FAT32 formatted SDHC™ card
Media Storage Capacity SD card: 2 GB; SDHC card: 32 GB
Recording File Format Stereo WAV
Playback File Formats Stereo WAV, MP3 (96-320 kbs, 32 / 44.1 / 48 kHz)
Sampling Rate (WAV) 44.1 kHz
Bit Depth

Recording: 24-bit

Playback: 16- or 24-bit

Power/Environmental

Connector IEC
Input Voltage Range 90 to 240 VAC
Recommended Ambient Operating Temperature 0˚ to 40˚ Celsius / 32˚ to 104˚ Fahrenheit

Physical

Height 3.5” (89 mm)
Width (Chassis only) 15” (381 mm)
Depth 15.6” (397 mm)
Weight 11.9 lbs (5.4 kg)
