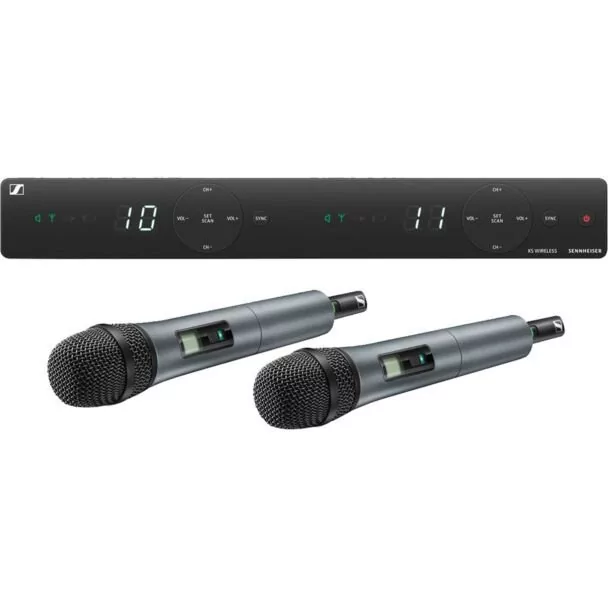

Sennheiser XSW 1-835 DUAL - Dual Wireless Handheld System With E835
-EM-XSW 1 Dual-Channel Receiver
-2 x SKM 835-XSW Handheld Transmitters
-2 x MZQ 1 Microphone Clips
-4 x AA Batteries
-Includes NT 12-5 CW Power Supply
-80 Hz to 16 kHz Frequency Response
Have a Question? Ask an Account Manager
Call us: (516) 597-5450
Or: Conatct Us
2-channel wireless system for singers and presenters. Stable UHF band, built-in antennas and streamlined interface.
Overview
XS Wireless 1 DUAL is a 2-channel wireless system for singers and presenters. Designed with ease of use in mind, these analog UHF systems feature a sleek dual-channel receiver with built-in antennas and the streamlined interface from Sennheiser's popular XS Wireless 1 series.
Features
-
Excellent live sound featuring Sennheiser's renowned evolution microphone capsules
-
Antenna-switching 2-channel diversity reception
-
Integrated antennas
-
Automatic frequency management and synchronization via remote channel for easy setup
-
Selectable UHF frequencies within a large bandwidth
-
Up to 10 compatible channels
Technical Data
System
- Frequency range
- 548-572 MHz
614–638 MHz
766-790 MHz
794-804 MHz
821-832 / 863-865 MHz
606-630 MHz
925-937.5 MHz
- Dimensions
- Ø 48 x L 180 mm
- Connector
- XLR-3
- Frequency range
- 548-572 MHz
- Frequency response
- 766-790 MHz
794-804 MHz
821-832 / 863-865 MHz
925-937.5 MHz
EM-XSW 1 DUAL
- Dimensions
- approx. 320 x 126.5 x 42 mm
- Weight
- approx. 620 g
- Power supply
- 12 V DC nom. / 300 mA
SKM 825-XSW / SKM 835-XSW
- Dimensions
- Approx. 260 x 50 mm
- Microphone
- Dynamic
- Weight
- Approx. 245 g
-
- Pick-up pattern
- Cardioid
- RF output power
- 10 mW
- Operating time
- Approx. 10 hrs
- Power supply
- 2 AA size batteries, 1.5 V
- Housing
- Rugged ABS housing
- Sensitivity
- 0 to -30 dB, adjustable in 10 dB steps
- Input sensitivity
- 1.5 mV / Pa
- AF frequency response
- 80-16,000 Hz
| Condition | New |
|---|---|
| MPN (manufacturer part number) | XSW 1-835 DUAL-A |
| UPC (Universal Product Code) | 615104315549 |
