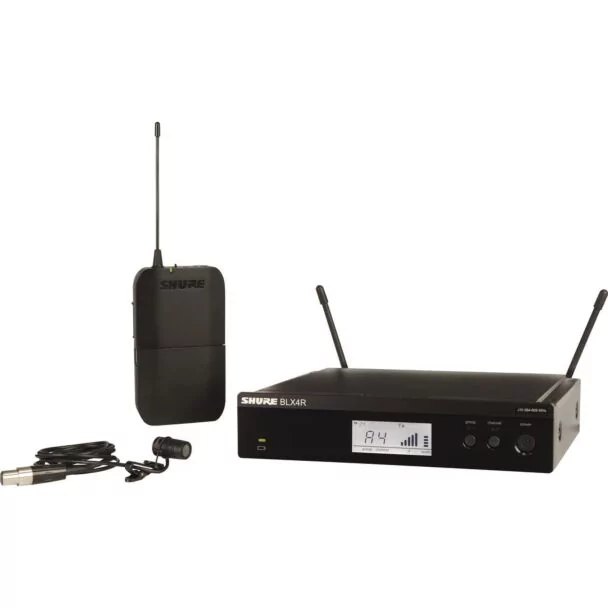

Shure BLX14R/W85 - Lavalier Wireless System With WL185 Lavalier

Special Price $449.00 Regular Price $561.00
SKU
SHURE-BLX14R/W85
  • Manufacturer: Shure

System Includes -WL185 Lavalier Condenser Microphone -BLX1 Bodypack Transmitter -BLX4R Rack Mount Receiver

More Information
MPN (manufacturer part number) BLX14R/W85
UPC (Universal Product Code) 0 42406470568
Condition New
Specs

BLX4R

Output 1x XLR Output
1x 1/4" (6.35 mm) Output
Output Impedance XLR: 200 Ω
1/4": 50 Ω
Audio Output Level XLR Connector: -20.5 dBV into 100kΩ Load (Reference +/-33 kHz with 1 kHz Tone)
1/4": -13 dBV into 100kΩ Load (Reference +/-33 kHz with 1 kHz Tone)
RF Sensitivity -105 dBm for 12 dB SINAD, Typical
Image Rejection >50 dB, Typical
Housing Molded ABS, Steel
Power Requirement 12 to 15 V DC @ 260 mA, Supplied by External Power Supply (Tip Positive)
Dimensions (H x W x D) 1.9 x 7.7 x 6.4" (50 x 198 x 163)
Weight 2.2 lb (998 g)



BLX1

Output 1x XLR Output
1x 1/4" (6.35 mm) Output
Output Impedance XLR: 200 Ω
1/4": 50 Ω
Audio Output Level XLR Connector: -20.5 dBV into 100kΩ Load (Reference +/-33 kHz with 1 kHz Tone)
1/4": -13 dBV into 100kΩ Load (Reference +/-33 kHz with 1 kHz Tone)
RF Sensitivity -105 dBm for 12 dB SINAD, Typical
Image Rejection >50 dB, Typical
Housing Molded ABS, Steel
Power Requirement 12 to 15 V DC @ 260 mA, Supplied by External Power Supply (Tip Positive)
Dimensions (H x W x D) 1.9 x 7.7 x 6.4" (50 x 198 x 163)
Weight 2.2 lb (998 g)



WL185

Transducer Electret Bias
Polar Pattern Cardioid
Frequency Response 50Hz to 17kHz
Dynamic Range (Typical) 102dB
Signal-to-Noise Ratio 18dB SPL (A-weighted)
Maximum Input Sound Level 130dB
Power Requirements Regulated Nominal +5 Vdc (2 Vdc to 10 Vdc)
Output Impedance 28 ohms
Output Connectors TA4-Female
Pad No
Low Frequency Roll-Off No
Dimensions Cable length: 4 foot (1.2 meter)
Weight not specified by manufacturer
