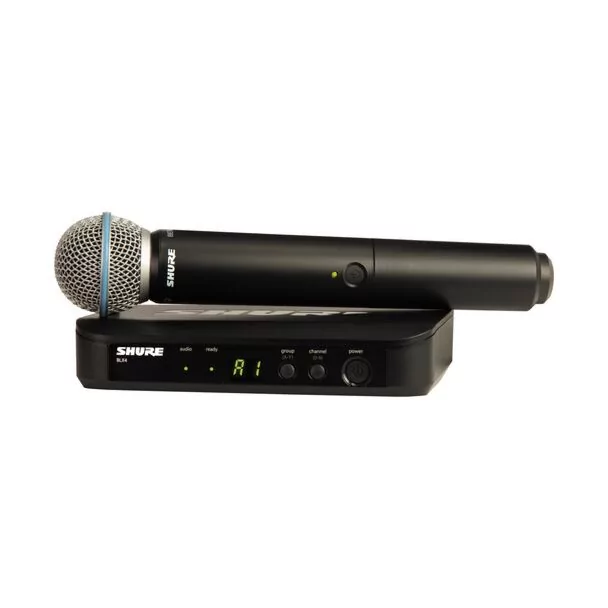

Shure BLX24/B58 - Handheld Wireless System With Beta58 Microphone

Special Price $399.00 Regular Price $499.00
SKU
SHURE-BLX24/B58
  • Manufacturer: Shure

System Includes -BLX2/B58 Handheld Transmitter -BLX4 Single Channel Receiver

More Information
MPN (manufacturer part number)BLX24/B58
UPC (Universal Product Code)0 42406246231
ConditionNew
Specs

BLX2

Transmitter
Audio Input Level 0 dB Gain: -20 dBV Maximum
-10 dB Gain: -10 dBV Maximum
Gain Adjustment Range 10 dB
RF Output 10 mW, Typical (Varies by Region)
Power Requirement 2x LR6 AA Batteries, 1.5 V Alkaline
Housing Molded ABS
Dimensions (Ø x L) 2.1 x 8.8" (53 x 224 mm)
Weight 7.7 oz (218 g)
Microphone
Type Dynamic (Moving Coil)
Frequency Response 50 Hz to 16 kHz
Polar Pattern Supercardioid, rotationally symmetrical about microphone axis, uniform with frequency
Output Level Open Circuit Voltage: -51.5 dBV/Pa* (2.6 mV) *1 Pa = 94 dB SPL





BLX4

Output 1x XLR Output
1x 1/4" (6.35 mm) Output
Output Impedance XLR: 200 Ω
1/4": 50 Ω
Audio Output Level XLR Connector: -27 dBV into 100kΩ Load (Reference +/-33 kHz with 1 kHz Tone)
1/4": -13 dBV into 100kΩ Load (Reference +/-33 kHz with 1 kHz Tone)
RF Sensitivity -105 dBm for 12 dB SINAD, Typical
Image Rejection >50 dB, Typical
Housing Molded ABS
Power Requirement 12 to 15 V DC @ 160 mA, Supplied by External Power Supply (Tip Positive)
Dimensions (H x W x D) 1.5 x 7.4 x 4.1" (40 x 188 x 103 mm)
Weight 8.5 oz (241 g)
