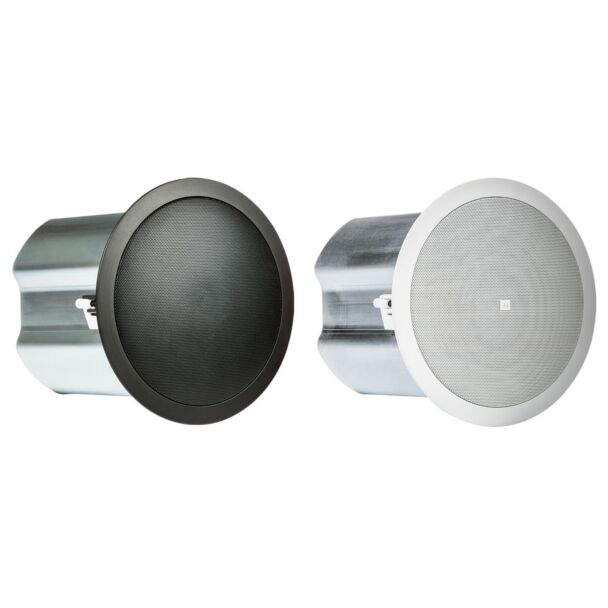

JBL Control 16C/T- 6.5" 100W Compact Ceiling Loudspeaker (Pair)

Special Price $238.00 Regular Price $299.00

discount



SKU
JBL-C16CT

-Blind-mount backcan for quick and easy install -Dual conduit/cable clamps -Black or White
JBL Control 16C/T- 6.5" 100W Compact Ceiling Loudspeaker (Pair)

Control 16C/T is a full-range ceiling speaker consisting of a 165 mm (6.5 inch) high tech cone driver and a 19mm soft-dome liquid cooled tweeter mounted in a vented, paintable baffle made of UV resistant UL94-V0 and UL94-5HB material, with a pre-attached blind- mount backcan for quick and easy installation. The speaker is designed to provide excellent sound quality for a wide variety of medium to high volume applications such as music cafes, business music systems, retail stores, music/ paging systems, airports, reception/waiting rooms, lounges, courtrooms, convention centers, hotels, educational facilities, and more.

The speaker delivers consistent sound quality for listeners located both off and on axis.

The high technology 165 mm (6.5 in) low- frequency driver is designed with a lightweight, high temperature anodized aluminum voice coil former and high temperature grade voice coil for stable performance and reliability under long-term high power working conditions.

The butyl rubber surround provides long-term durability and excellent sonic damping while the polypropylene cone is water and humidity resistant. The FEA-optimized motor construction and cone geometry, along with linear suspension spider design, allow for a smooth frequency response and more consistent off-axis performance. The 19 mm (3/4 in) high frequency driver features a highly damped treated silk dome for clear and warm sound, a lightweight KaptonTM voice coil for better high frequency response and excellent reliability, low viscosity liquid cooling for power handling and reliability, and a wide dispersion waveguide design to produce wide coverage and smooth frequency response

The removable locking connector has screw terminals for secure wire termination and "loop through" terminals. A dual strain relief assembly provides clamping for use with cable or flex conduit.

Ideal for a wide variety of projects, the Control 16C/T is switchable for use as either an 8 ohm low-impedance speaker or as part of a 70V or 100V distributed loudspeaker system with a 30 Watt multi-tap transformer. The speaker comes complete with two tile rail supports, one C-ring support backing plate, cutout template, paint shield and grille. A safety seismic attachment ring is provided on the top surface. Available in white (Control 16C/T) or black (Control 16C/T-BK)

More Information
SKU JBL-C16CT
Freeshipping Free Shipping
UPC (Universal Product Code) 050036 904575
MPN (manufacturer part number) CONTROL 16C/T
Discount INSTANT SAVINGS: 10% OFF
Condition New
Features -165 mm (6.5 in) high output driver with polypropylene cone and butyl rubber surround -19 mm (0.75 in) soft-dome liquid-cooled tweeter -Blind-mount backcan for quick and easy install -Dual conduit/cable clamps -Combined 70V/100V and low impedance direct operation -50 Watts at 8Ω nominal setting -30W multi-tap at 70V/100V -62 Hz – 20 kHz bandwidth with wide 110° coverage -High 91 dB sensitivity for high maximum SPL -White or black (-BK)
Specs
Frequency Range (-10 dB)   :   62 Hz – 20 kHz
Power Capacity (at low-Z)   :   100 Watts Continuous Program Power
50 Watts Continuous Pink Noise
Transformer Taps   :   30 W, 15 W, 7.5 W @ 70V or 100V
(plus 3.8 W @ 70V only)
Frequency Response (±3 dB)   :   96 Hz – 15 kHz
Nominal Sensitivity   :   91 dB
Nominal Coverage Angle   :   110° conical coverage
Directivity Factor (Q)   :   7.8
Directivity Index (DI)   :   8.2 dB
Rated Maximum SPL   :   108 dB @ 1 m (3.3 ft) average, 116 dB peak
Nominal Impedance   :   8 ohms (in direct/bypass 8Ω setting)
Crossover Network   :   12 dB/oct (2nd order) low-pass to LF driver,
12 dB/oct (2nd order) high-pass to HF driver
LF Driver   :   165 mm (6.5 inch) with polypropylene cone, butyl rubber surround, anodized aluminum voice coil former, high temperature voice coil
HF Driver   :   19 mm (3/4 in), highly-damped treated-silk dome, Kapton™ voice coil, liquid cooling, wide dispersion waveguide
Input Connector   :   Removable locking 4-pin connector with
screw-down terminals. Max wire size 12 AWG (2.5 mm2)
Connector Wiring   :   Pin 1 = + In; Pin 2 = - In; Pin 3 = + Loop Thru;
Pin 4 = - Loop Thru
Strain Reliefs   :   Strain relief for two cables or two flex conduits via coupled clamping mechanism
Materials   :   ABS baffle with UL94-V0 and UL94-5VB flame class fire rating; Zinc-plated steel backcan
Safety Agency   :   UL1480, UL2043, NFPA90 & NFPA70; S7232/UL Listed, Suitable for use in air handling spaces, Signaling Speaker; Transformer UL registered per UL1876; ROHS, C-tick N108, CE compliant; Baffle meets UL94-V0 and UL94-5VB flammability rating; In accordance with IEC60849/EN60849 systems
Dimensions   :   253 mm diameter x 225 mm depth from back of baffle (10.0 in diameter x 8.8 in depth)
Ceiling Cutout Size   :   Circular cutout with 170 mm (6.7 in) diameter (cardboard cutout template included)
Ceiling Thickness Range   :   Up to 38 mm (1.5 in) with stock dog-ears. MTC-TCD thick-ceiling dog-ears available for up to 60 mm (2.4 in) ceiling thicknesses
Safety Seismic Attachment   :   One point, top surface
Net Weight   :   3.4 kg (7.4 lbs, one speaker)
Shipping Weight   :   11.2 kg (24.7 lbs, pair in master carton)
Included Accessories   :   C-ring support backing plate, 2 tile support rails (for 2 ft or 600 mm tile spans; optional MTC-48TR extension available for larger 4 ft or 1200 mm tile spans), cutout template, paint shield, removable locking multi-pin connector, grille
Optional Accessories   :   MTC-26NC new construction bracket
MTC-26MR mud-ring construction bracket
MTC-TCD thick-ceiling dog-ears for ceiling thicknesses up to 60 mm (2.4 in, ordering one set = 24 dog-ears for 6 speakers)
MTC-48TR tile rail for 1200 mm (4 ft) tile spans
