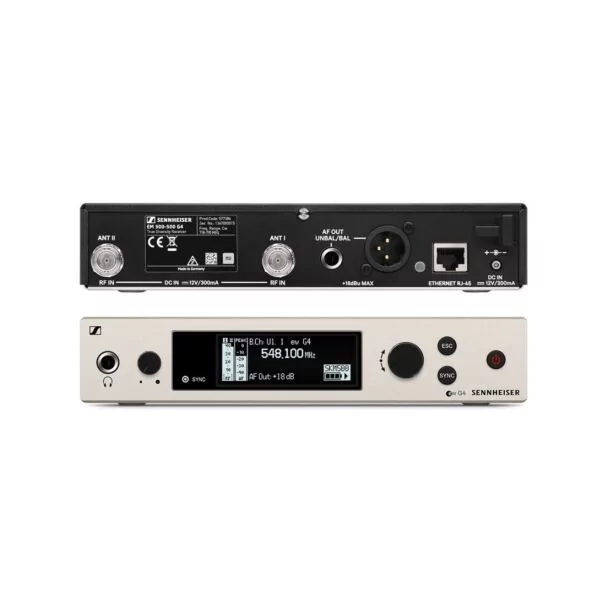

Sennheiser EM 300-500 G4 - Wireless Diversity Receiver

True diversity half-rack receiver in a full-metal housing with intuitive OLED display for full control with increased bandwidth and transmission power, ready to take the world‘s biggest live stages. For evolution wireless G4 300/500 Series systems.

Key Features

• True diversity half-rack receiver in a full-metal housing with intuitive OLED display

• Easy to use, fast setup time

• Integrated network port allows control, monitoring and setup via Sennheiser Control Cockpit and WSM Software

• Broad range of products and existing accessories (such as microphones) allows usage in any kind of environment

• Up to 88 MHz bandwidth, up to 32 channels

• Increased RF output power (10/30/50 mW)

• Transmission Range: up to 100 meters / 330 feet

• Compatible with wireless speaker system LSP 500 PRO

• RC (remote control) switch available for the bodypack transmitter

• Frequency range

  AS: 520 - 558 MHz

  K+: 925 - 937,5 MHz

  JB: 806 - 810 MHz

  GBw: 606 - 678 MHz

  Gw: 558 - 626 MHz

  Bw: 626 - 698 MHz

  Cw: 718 - 790 MHz

  Dw: 790 - 865 MHz

  Aw+: 470 - 558 MHz

  Gw1: 558 - 608 MHz

• Dimensions

  Approx. 202 x 212 x 43 mm

• Compander

  Sennheiser HDX

• THD, total harmonic distortion

  ≤ 0.9 %

• Weight

  Approx. 980 g

• Audio output

  6.3 mm jack socket (unbalanced): +12 dBu

  XLR socket (balanced): +18 dBu

• Signal-to-noise ratio

  ≥ 115 dBA

• Switching bandwidth

  up to 88 MHz

• Peak deviation

  ±48 kHz

• Nominal deviation

  ±24 kHz

• Modulation

  Wideband FM

• Power supply

  12 V DC

• Antenna connector

  2 BNC sockets

• Current consumption

  350 mA

• Adjacent channel rejection

  Typically ≥ 75 dB

• Intermodulation attenuation

  Typically ≥ 70 dB

• Receiving frequency

  Max. 3520 receiving frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation, 6 frequency banks with up to 32 programmable channels

• RF sensitivity

  < 2.5 μV for 52 dBA eff S/N

• Squelch

  5 to 25 dBμV in steps of 2 dB

• Equalizer

  Preset 1: Flat

  Preset 2: Low Cut (-3 dB at 180 Hz)

  Preset 3: Low Cut/High Boost (-3 dB at 180 Hz, +6 dB at 10 kHz)

  Preset 4: High Boost (+6 dB at 10 kHz)

• Temperature Range

  -10 °C to +55 °C

• Receiver Principle

  True diversity

• Blocking

  ≥ 75 dB
